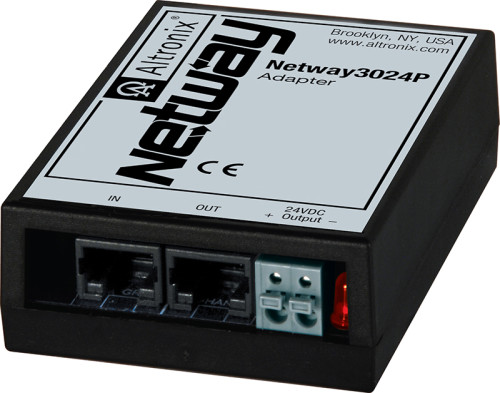

NetWay3024P

PoE Adapter, Converts PoE/PoE+ into 24VDC

Altronix Netway3024P provides simultaneous 24VDC and PoE/PoE+ outputs for applications including PoE cameras and external microphones, control boards, switching equipment, and more.

  • Functions
    • Passes PoE+ and converts PoE to 24VDC.
    • Speed: 10/100 Mbps.
  • Output
    • Up to PoE+.
    • 24VDC up to 1A.
    • 25W max combined.
  • Indicators (LED)
    • Red LED: Power ON.
  • Temperature
    • Operating: 0° C to 50° C (32° F to 122° F).
    • Storage: - 40° C to 70° C ( - 40° to 158° F).
    • Relative Humidity 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 3,048m.

CE Compliant
Enclosure:
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weight: 0.2 Lbs. (0.1 kg).
  • Shipping Weight: 0.25 Lbs. (0.11 kg).
