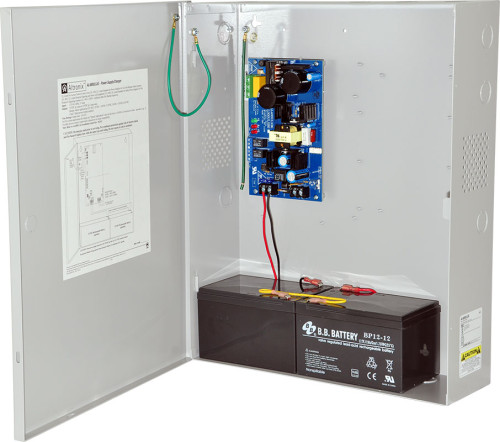

AL400ULXJG

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 115VAC, BC600G Enclosure

AL400ULXJG is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.

  • Input
    • Input 115VAC, 60Hz, 3.5A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 12VDC or 24VDC selectable output.
    • 12VDC @ 4A or 24VDC @ 3A supply current.
    • Class 2 Rated power-limited output.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
    • Operating temperature: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage temperature: -20ºC to 70ºC (-4ºF to 158ºF).
    • Relative Humidity 85% +/-5%.
      • BTU/Hr (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 37 BTU/Hr.
    • System AC input VA requirement: 402.5VA.
UL Listed For:
Access Control System Units (UL294)
Power Supplies for use with Burglar Alarm Systems (UL603)
Hospital Signaling and Nurse Call Equipment (UL1069)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

CSFM - California State Fire Marshal Approved

MEA - NYC Department of Buildings Approved

NFPA 72 Compliant

FM Approved
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 11.5 Lbs. (5.22 kg).
  • Shipping Weight: 13.7 Lbs. (6.21 kg).
