OLS20220

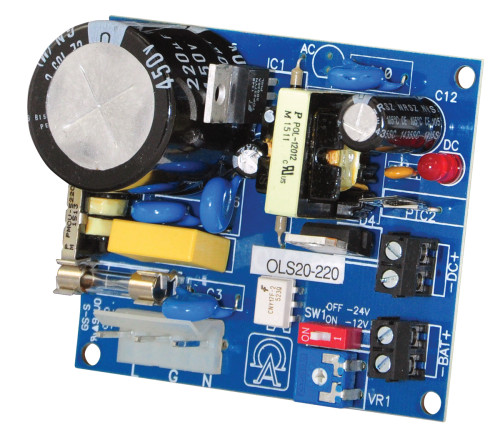

Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 220VAC, Board

Altronix OLS20220 power supply/charger converts 220VAC 50/60Hz input into a 12VDC @ 1A or 24VDC @ 0.5A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of application for access control and security system accessories that require additional power.

  • Input
    • 220VAC, 50/60Hz, 0.25A.
  • Output
    • 12VDC/24VDC selectable output.
    • 1A @ 12VDC or 0.5A @ 24VDC.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.3A.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery leads included.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 6 BTU/Hr.
Dimensions (approximate):
  • 2.6"W x 3.1"L x 1.3"H (66.4 mm W x 78.74 mm L x 33.02 mm H).
Weights (approximate):
  • Product Weight: 0.25 Lbs. (0.11 kg).
  • Shipping Weight: 0.35 Lbs. (0.16 kg).
