Pace1PRMT

Long Range Ethernet Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Transceiver

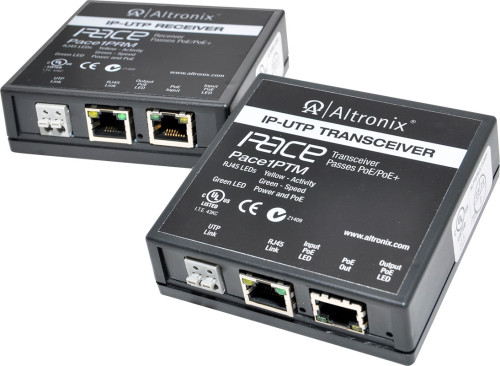

Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100Mbps full duplex and power via a single twisted pair (UTP) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.

  • Input
      • Pace1PRM:
        • Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
      • Pace1PTM:
        • Powered by Pace1PRM.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or 1 pair UTP structured cable.
    • Distance: up to 500m (1,600 ft.).
    • Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace1PRM to Pace1PTM by PoE protocol.
    • Throughput is rated to pass 100Mbps of data at distances up to 500m (1,600 ft.)
  • CAT5e or higher
    • Distance: up to 500m (1,600 ft.) @ 100Mbps.
  • UTP (single pair)
    • Distance: up to 152m (500 ft.) @ 100Mbps.
  • LED Indicators
    • Pace1PRM/Pace1PTM: Green - PoE ON (by respective RJ45 jack).
    • Pace1PRM and Pace1PTM (RJ45 jack): Yellow and Green LED IP Link status, 10/100Base-T/active.
  • Temperature
      • Operating Temperature:
        • Pace1PRM:
        • - 20ºC to 49ºC (-- 4ºF to 120.2ºF).
        • Pace1PTM:
        • 15W: - 40ºC to 75ºC ( - 40ºF to 167ºF)
        • 25W: - 40ºC to 70ºC ( - 40ºF to 158ºF)
        • 30W: - 40ºC to 60ºC ( - 40ºF to 140ºF)
      • Storage Temperature:
        • -40ºC to 75ºC (-40º to 167ºF).
        • Relative humidity: 85%, +/- 5%, non-condensing.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.
UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

C-TICK Compliant

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Enclosure:
  • Modular plastic case. VB6
  • Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Weights (approximate):
  • Product Weight: 0.24 Lbs. (0.11 kg).
  • Shipping Weight: 0.42 Lbs. (0.19 kg).
