AL1012M220

Access Power Distribution Module w/ Power Supply/Charger, 5 PTC Class 2 Outputs, 12VDC @ 10A, FAI, 220VAC, BC400 Enclosure

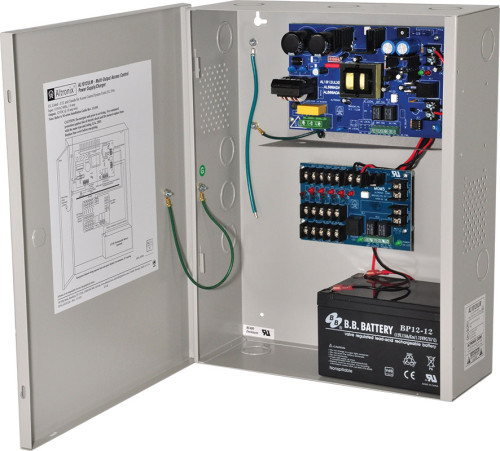

AL1012M220 multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 220VAC 50/60Hz input into five (5) individual PTC protected 12VDC outputs (see specifications). Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or may be used to trigger auxiliary devices.

Specifications

  • Input
    • Input 220VAC 50/60Hz, 2.2A.
    • Input fuse rated @ 5A/250V.
    • Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.
  • Output
    • 12VDC outputs.
    • 10A supply current.
    • Five (5) (auto-resettable) individual PTC protected outputs, rated @ 2A.
    • Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC).
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
    • Current limit is 2A per output.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contact).
    • Low battery supervision (form "C" contact).
    • Battery presence supervision (form "C" contact).
    • Power fail supervision relay (form "C" contact rated 1A @ 28VDC).
  • Visual Indicators
    • DC output LED indicator.
    • LEDs indicate condition of power outputs.
    • Power & input trigger LEDs.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/hr.
    • System AC input VA requirement: 352VA.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to one (1) 12VDC/12AH Batteries.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weigtht: 8.95 Lbs. (4.06 kg).
  • Shipping Weigtht: 10.25 Lbs. (4.65 kg).
