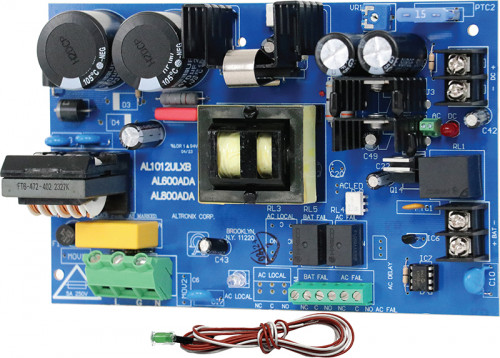

AL1012RLB

Power Supply Charger with LED Cable Assembly, 12VDC @ 10A, Board

Altronix AL1012RLB power supply/charger converts a 115VAC, 60Hz input into a single 12VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Includes LED cable assembly and LED lens.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 2.6A max.
    • Input Fuse: 5A/250V.
  • Output
    • Voltage: 12VDC output
    • Current: 10A continuous supply current
    • Other: Short circuit and thermal overload protection
    • Filtered and electronically regulated output
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Fuse Rating: 15A/32V
    • Failover Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form "C" contacts
    • Battery: Form "C" contacts
  • Indicators (LED)
    • Input: 115VAC is present
    • DC Output: Powered
    • Discharged or not connected
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

Dimensions & Weight

Dimensions (approximate):
  • 4.5"W x 7.25"L x 1.75"H (114.3 mm W x 184.2 mm L x 44.5 mm H).
Weights (approximate):
  • Product Weigtht: 0.75 Lbs. (0.34 kg).
  • Shipping Weigtht: 0.9 Lbs. (0.41 kg).
