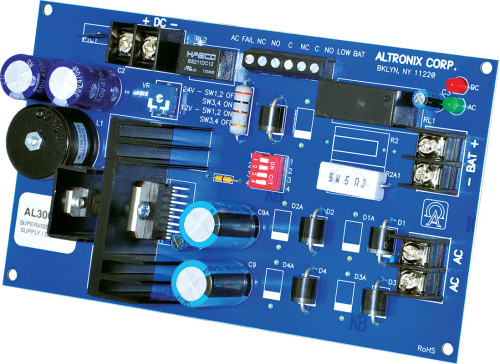

AL300ULB

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 28VAC, Board

AL300ULB power supply/charger converts a 28VAC input, into a single 12VDC or 24VDC output.

Specifications

  • Input
    • Input 28VAC/100VA.
  • Output
    • 12VDC or 24VDC selectable output.
    • 12VDC or 24VDC @ 2.5A supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
    • Operating temperature: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage temperature: -20ºC to 70ºC (-4ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 17 BTU/Hr.
        • 24VDC: 32 BTU/Hr.
    • System AC input VA requirement: 115VA.

Dimensions & Weight

Dimensions (approximate):
  • 4"W x 7"L x 1.75"H (101.6 mm W x 177.8 mm L x 51.05 mm H).
Weights (approximate):
  • Product Weigtht: 1.05 Lbs. (0.48 kg).
  • Shipping Weigtht: 1.25 Lbs. (0.57 kg).
