Specifications
Input
- Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.25A.
Output
- 5VDC, 12VDC, 24VDC simultaneous outputs.
- 5VDC @ 1.75A continuous supply current.
- 12VDC @ 1.75A continuous supply current.
- 24VDC @ 3A continuous supply current.
- PTC protected outputs.
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 52 BTU/Hr.
- System AC input VA requirement: 218.5VA.
Dimensions & Weight

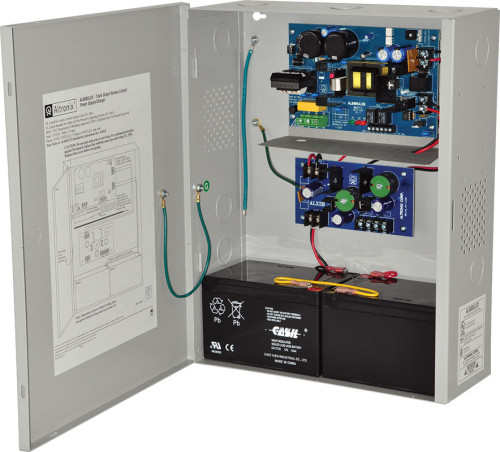

Enclosure:
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
- 1.125" and 1.375" combination knockouts.
Weights (approximate):
- Product Weigtht: 9.8 Lbs. (4.45 kg).
- Shipping Weigtht: 11.1 Lbs. (5.03 kg).
