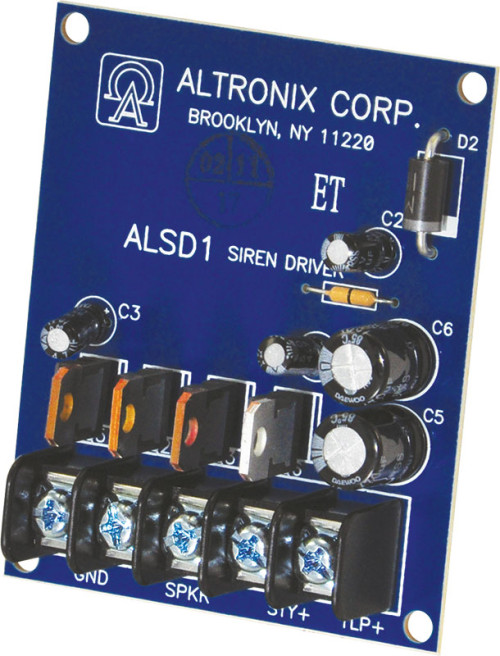

ALSD1

Dual Channel Siren Driver, 6/12VDC, 113 db to 120 db

The ALSD1 are high output, very low current draw, dual channel siren drivers. They are designed to work with alarm panels with limited current capability.

Specifications

  • Input Voltage
    • 6VDC or 12VDC operation.
    • Current draw range from .5A to 1.8A based on speaker resistance and supply voltage.
  • Features
    • Two (2) channel operation - steady or yelp.
    • Very low current draw.
    • Parallel or series speaker wiring
    • 113 db @ 10' @ 6 Volts - 8 Ohms
    • 115 db @ 10' @ 6 Volts - 4 Ohms
    • 116 db @ 10' @ 12 Volts - 8 Ohms
    • 120 db @ 10' @ 12 Volts - 4 Ohms
  • Electrical
      • Temperature:
        • Operating - 25° C to 55° C ( - 13° F to 131° F).
        • Storage - 25° C to 70° C ( - 13° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • System input VA requirement: 21.6A.

Dimensions & Weight

Dimensions (approximate):
  • 2.75"W x 1.1"L x 1.75"H (69 mm W x 28 mm L x 44 mm H).
Weights (approximate):
  • Product Weigtht: 0.08 Lbs. (0.04 kg).
  • Shipping Weigtht: 0.1 Lbs. (0.05 kg).
