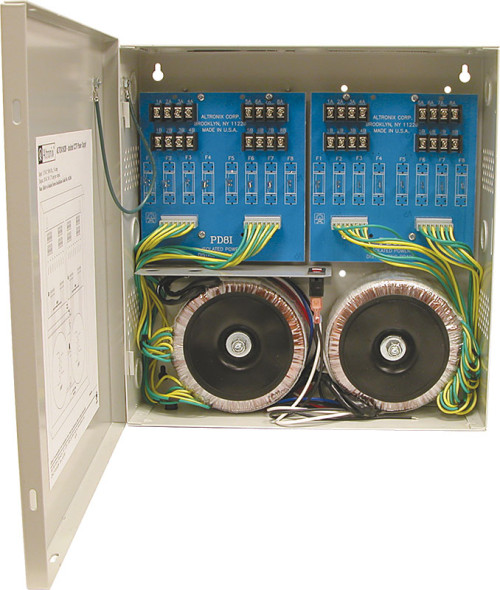

ALTV2416CBI220

CCTV Power Supply, 16 Isolated PTC Class 2 Outputs, 24VAC @ 25A, 220VAC, BC300 Enclosure

ALTV2416CBI220 Isolated CCTV Power Supplies provide 24VAC distributed via sixteen (16) PTC protected isolated outputs for powering CCTV Cameras, heaters and other video accessories.

Specifications

  • Input
    • 220VAC, 50/60Hz, 5.4A.
  • Output
    • Sixteen (16) PTC protected outputs (auto-resettable).
    • 24VAC @ 28A (672VA) supply current.
    • Outputs are rated @ 2.5A.
    • Surge suppression.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 344 BTU/Hr.
    • System AC input VA requirement: 1188VA.
  • Features
    • Illuminated master power disconnect circuit breaker with manual reset.
    • Spare fuses provided.
    • Unit maintains camera synchronization.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 23.3 Lbs. (10.57 kg).
  • Shipping Weigtht: 24.3 Lbs. (11.02 kg).
