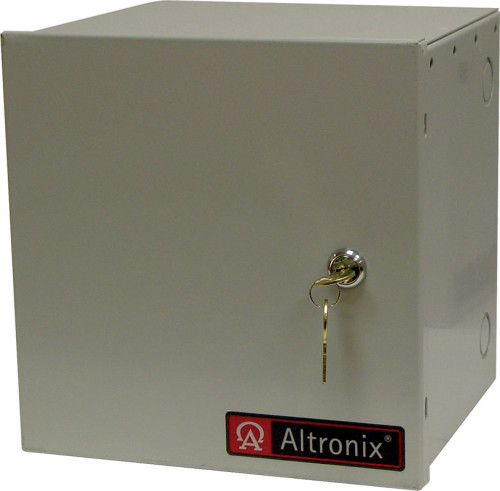

BC1240
Enclosure, 9.5"H x 9.5"W x 7.5"D, Grey, 18 Gauge, Indoor
Altronix BC1240 is a battery enclosure that can accommodate one (1) 12VDC/40AH battery. Altronix enclosures feature ample knockouts that are suitable for 0.5” or 0.75” conduits.
Specifications
Features
- 18 Gauge steel enclosure
- Ample knockouts accommodating either 0.5” or 0.75” conduits for convenient access
- Includes camlock, two tamper switches, 24” red & black battery wires and two self-tapping screws to secure door
- Fits one (1) 12VDC/40AH battery
- NEMA 1 enclosure
Accessories
| Name | Description |
|---|---|
| WM5 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM100 | Magnetic Cable Tie Mounts |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
Dimensions & Weight
Enclosure:
- Wall mount enclosure for indoor use.
- Dimensions 9.5"W x 9.5"H x 7.5"D (243 mm W x 243 mm H x 191 mm D).
- 1/2" and 3/4" combination knockouts.
Weights (approximate):
- Product Weigtht: 6.1 Lbs. (2.77 kg).
- Shipping Weigtht: 7.3 Lbs. (3.31 kg).
