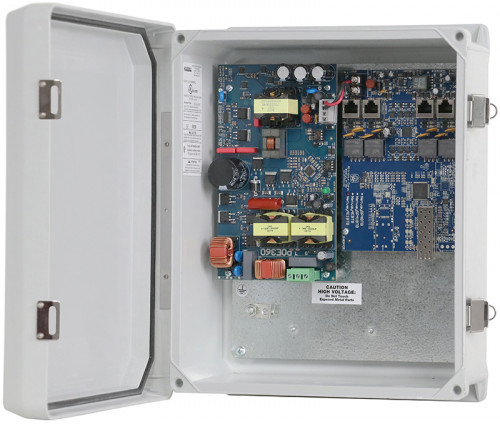

NetWay4E1BTWP3

4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger, - NEMA4/4X, IP66 rated Outdoor enclosure

Altronix NetWay4E1BTWP3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWay4E1BTWP3 accommodates single/multi-mode fiber to deliver data from NetWay Spectrum head-end media converters/injectors.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A
    • Input Fuse: 5A/250V
  • Power Output
      • Maximum Power:
        • Four (4) PoE ports rated at 90W each, 360W total power
        • IEEE 802.3af (15W), IEEE 802.3at (30W),
        • IEE 802.3bt (90W) compliant
        • Integral surge protection
      • SFP Ports:
        • One (1) Gigabit SFP port
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Battery Charging
    • Type: 48VDC charging circuit charges sealed lead acid or gel type batteries (require separate ventilated enclosure)
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately)
    • (Separate ventilated enclosure is required)
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates proper operation of the unit
  • Temperature
      • Operating Temperature:
        • 360W: – 40ºC to 45ºC (– 40ºF to 113ºF)
        • 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
        • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
        • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
    • Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF)
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 183 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
PMK1 Pole Mount Kit, For Outdoor Enclosures

Similar Products

Name Description
NetWay4E1BTPL3 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - Backplane version
NetWay4E1BTWPX3 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure. - Accommodates up to four (4) 12VDC/4AH batteries
NetWay4E1BTX3 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA1 rated Indoor enclosure

Dimensions & Weight

Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weigtht: 10.32 Lbs. (4.68 kg).
  • Shipping Weigtht: 11.7 Lbs. (5.3 kg).
