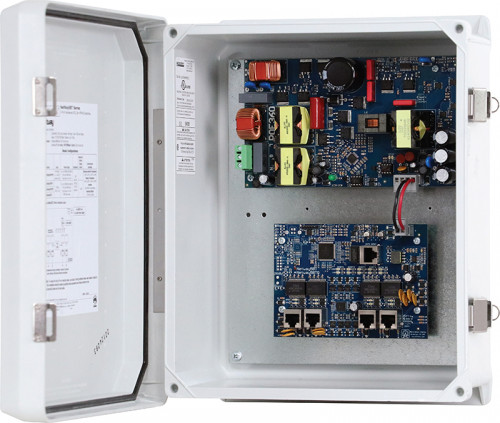

NetWay5BTWP

5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.

Altronix NetWay5BTWP powered hardened 4PPoE switch provides a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A
    • Input Fuse: 5A/250V
  • Power Output
      • Maximum Power:
        • Four (4) 1IEEE802.3af/3at/3bt PoE ports rated at 90W each IEEE802.3af/3at/3bt compliant 240W total power
        • Integral surge protection
      • Uplink Port:
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Battery Charging
    • Type: 24VDC charging circuit charges LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure)
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately)
    • (Separate ventilated enclosure is required)
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100Base-T/active LEDs for each port
  • Temperature
      • Operating Temperature:
        • 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
        • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
        • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
    • Storage Temperature: - 40ºC to 85ºC (- 40º to 185ºF)
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr.(approx.): 123 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
PMK1 Pole Mount Kit, For Outdoor Enclosures

Similar Products

Name Description
NetWay5BT 5-port Hardened 802.3bt 4PPoE Switch Board
NetWay5BTWPX 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries.
NetWay5BTWPN 5-port Hardened 802.3bt 4PPoE Switch - NEMA4/4X rated Outdoor enclosure
NetWay5PQX 5-port Managed Hardened PoE+ Switch with Power Supply/Charger - NEMA1 rated Indoor enclosure BC300
NetWay5BTPL 5-port Hardened 802.3bt 4PPoE Switch with Power Supply/Charger - Backplane version

Dimensions & Weight

Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weigtht: 10.32 Lbs. (4.68 kg).
  • Shipping Weigtht: 11.7 Lbs. (5.3 kg).
