NetWaySP41BTPL3

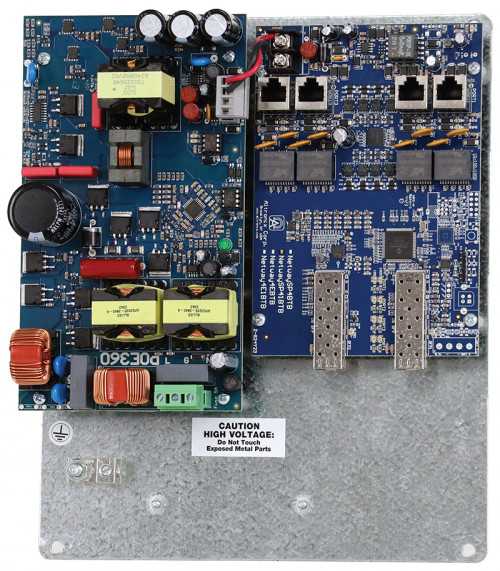

Dual Fiber Optic SFP 1G Link, 4-port Hardened 802.3bt 4PPoE Switch and 320W Power Supply/Charger mounted on Backplane

Altronix NetWaySP41BTPL3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP41BTPL3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A
    • Input Fuse: 5A/250V
  • Power Output
      • Maximum Power:
        • Four (4) PoE ports rated at 90W each, 360W total power
        • IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant
        • Integral surge protection
      • SFP Ports:
        • Two (2) Gigabit SFP ports
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Battery Charging
    • Type: 48VDC charging circuit charges sealed lead acid or gel type batteries (require separate ventilated enclosure)
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately)
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates fiber connection for SFP port
    • Heartbeat LED indicates proper operation of the unit
  • Temperature
      • Operating Temperature:
        • 360W: – 40ºC to 45ºC (– 40ºF to 113ºF)
        • 240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
        • 180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
        • 150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
    • Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF)
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr.(approx.): 183 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.

Similar Products

Name Description
NetWaySP41BTWP3 Dual Fiber Optic SFP 1G Link, 4-port Hardened 802.3bt 4PPoE Switch and 320W Power Supply/Charger mounted in NEMA4/4X, IP66 rated Outdoor enclosure
NetWaySP41BTWPX3 Dual Fiber Optic SFP 1G Link, 4-port Hardened 802.3bt 4PPoE Switch and 320W Power Supply/Charger mounted in NEMA4/4X, IP66 rated Outdoor enclosure. Accommodates up to four (4) 12VDC/4AH batteries
NetWaySP41BTX3 Dual Fiber Optic SFP 1G Link, 4-port Hardened 802.3bt 4PPoE Switch and 320W Power Supply/Charger mounted in NEMA1 rated Indoor enclosure

Dimensions & Weight

Dimensions (approximate):
  • 8.875"W x 2.375"L x 10.75"H (225.4 mm W x 60.3 mm L x 273.1 mm H).
Weights (approximate):
  • Product Weigtht: 2.6 Lbs. (1.18 kg).
  • Shipping Weigtht: 4 Lbs. (1.81 kg).
