NetWaySP4LWPX

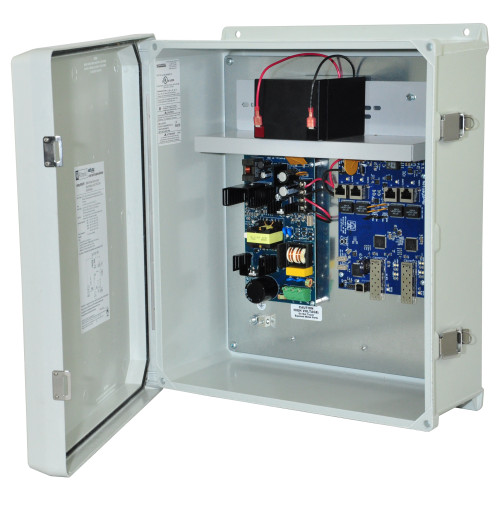

Dual Fiber Optic SFP 1G Link, 4 port 10/100/1000 PoE/PoE+ switch and power supply; Hardened 75W Power Supply/Optimized LiFePO4 Battery Charger & Switch Boards mounted in larger NEMA4/4X, IP66 rated Outdoor enclosure

Altronix NetWaySP4LWPX PoE+ Outdoor Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) ports passing data for PoE/PoE+ compliant devices. Cameras/ edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere. This unit is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.

Specifications

  • Input
    • 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
  • Power Output
    • Four (4) PoE/PoE+ (up to 30W) ports.
    • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
    • 75W total power.
    • (Note: connected devices in total not to exceed 75W).
    • Integral surge protection.
  • Fiber Port
    • Two (2) Gigabit SFP ports.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair Cat-5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Built-in charger for 12V LiFePO4 (Lithium Iron Phosphate) battery.
    • Caution: Do not use lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • VLAN
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095
  • LINQ Technology
    • Remote network management allows for camera/device reset and monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
  • Temperature
      • Operating:
        • 60W: - 40° C to 75° C ( - 40° F to 167° F).
        • 75W: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

Accessories

Name Description
BTL125 Rechargeable Lithium Iron Phosphate (LiFePO4) Battery
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
PMK2 Pole Mount Kit, For Outdoor Enclosures
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
WG1 NEMA Rated Wire Gland Inlets
Vent2 Air Vents For NEMA4/4X Rated Enclosures

Dimensions & Weight

Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weigtht: 15 Lbs. (6.8 kg).
  • Shipping Weigtht: 17.5 Lbs. (7.9 kg).
