NetWaySP4T2W53

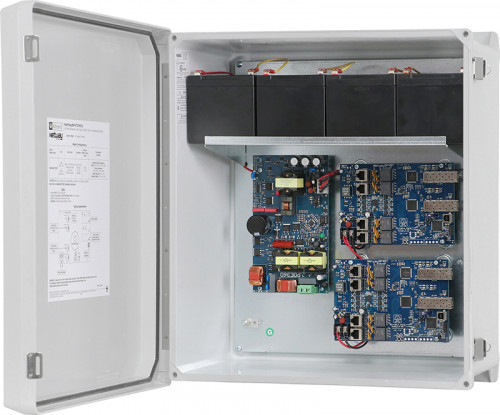

8-port Hardened 360W 802.3bt 4PPoE Switch (Layer 2), Integral Power with Rapid Battery Charger mounted in NEMA 4/4X, IP66-11 rated. Outdoor enclosure

Altronix NetWaySP4T2W53 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with four (4) 1Gb SFP ports and eight (8) 802.3bt compliant Ethernet ports rated at 90W each, with 360W total power for deploying the latest high-powered IP devices in remote locations. NetWaySP4T2W53 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology enables monitoring, control, and reporting from anywhere over the network.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A
    • Input Fuse: 5A/250V
  • Power Output
      • Maximum Power:
        • Eight (8) PoE ports rated at 90W each, 360W total power
        • IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant
        • Integral surge protection
      • SFP Ports:
        • Four (4) Gigabit SFP ports
  • Ethernet Ports
    • Eight (8) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or higher structured cable
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Battery Charging
    • Type: 24VDC charging circuit charges sealed lead acid or gel type batteries (within enclosure, ventilation is required) Vent2 Ventilation Kit is included
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately)
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates fiber connection for SFP port
    • Heartbeat LED indicates proper operation of the unit
  • VLAN:
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • LINQ Technology:
    • Remote network management allows for camera/device reset and diagnostic monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time events
    • Event log tracks history
  • Temperature
    • Operating (360W): – 30ºC to 65ºC (– 22ºF to 149ºF)
    • Operating (240W): – 30ºC to 70ºC (– 22ºF to 158ºF)
    • Storage: – 30ºC to 85ºC (– 22ºF to 185ºF)
    • Relative Humidity: 85% +/– 5%
    • BTU/Hr. (approx.): 183 BTU/Hr.
    • Operating Altitude: – 304.8 to 2,000m.

Agency Listings


CE Compliant

Accessories

Name Description
NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
PMK2 Pole Mount Kit, For Outdoor Enclosures
Vent2 Air Vents For NEMA4/4X Rated Enclosures

Dimensions & Weight

Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 17.32"W x 19.31"H x 9.58"D (439.9 mm W x 490.4 mm H x 243.3 mm D).
Weights (approximate):
  • Product Weigtht: 20.6 Lbs. (9.34 kg).
  • Shipping Weigtht: 24.3 Lbs. (11.1 kg).
