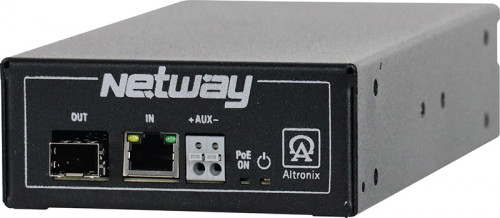

NetwaySP1H

Single Port Ethernet to Fiber Media Converter with Integral Power for Composite Fiber (Powered) Cable

Altronix NetwaySP1H Media Converter with Integral Power provides one (1) 1Gb SFP port and one (1) port for up to 90W to be transmitted over single/multi-mode fiber or composite cable (powered) cable (fiber + copper combined) to NetWay Spectrum PoE Hardened Switches and remote media converters. NetWaySP1H operates at 115VAC or 230VAC input.

Specifications

  • Input
    • 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A (auto-ranging)
  • Power
      • Maximum Power
        • One (1) 56VDC non power-limited output up to 90W max. full power
        • Short circuit protection
      • SFP Port
        • One (1) Gigabit SFP/Fiber port
        • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included)
  • Ethernet/Data
    • One (1) port to switch
    • Wire type: 4-pair CAT5e and higher
    • Connectivity: RJ45, auto-crossover
    • Speed: Gigabit (1,000Mbps)
    • Distance: up to 100m.
  • LED Indicators
    • Red LED: PoE ON
    • Red LED: Power ON
    • Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active
  • Temperature
    • Operating (90W): - 40ºC to 50ºC (- 40ºF to 122ºF).
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF).
    • Relative Humidity: 85% +/- 5%.
  • Operating Altitude
    • -304.8 to 609.6m.

Agency Listings


CE Compliant

Accessories

Name Description
P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver

Dimensions & Weight

Enclosure:
  • Dimensions 4.1"W x 1.7"H x 7.2"D (105 mm W x 44 mm H x 183 mm D).
Weights (approximate):
  • Product Weigtht: 2.2 Lbs. (1 kg).
  • Shipping Weigtht: 3.2 Lbs. (1.45 kg).
