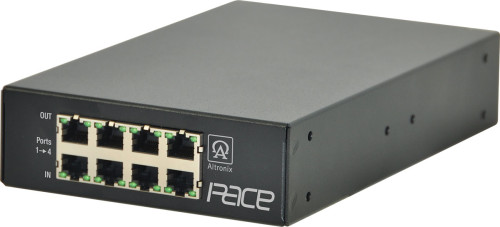

Long Range Ethernet 4 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver

Pace4PRM are long range Ethernet receivers that transmit data at 100Mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. The Pace4PRM receivers are powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable.

  • Input
    • Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e.
    • Distance: up to 500m.
    • Speed: 100BaseT, full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace4PRM to Pace1PTM by PoE protocol.
  • CAT5e or Higher
    • Throughput is rated to pass 100Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
    • Distance: up to 500m @ 100Mbps.
  • LED Indicators
      • Yellow and Green LED (by RJ45 jack):
        • IP Link status, 10/100Base-T/active.
  • Temperature
    • Operating Temperature: -20ºC to 49ºC (-4ºF to 120.2ºF).
    • Storage Temperature: -30ºC to 70ºC (-22ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 2,000m.
UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment
CE Approved
C-TICK Compliant
  • Dimensions 5.2"W x 1.7"H x 8.4"D (132 mm W x 43 mm H x 213 mm D).
Weights (approximate):
  • Product Weight: 1.35 Lbs. (0.61 kg).
  • Shipping Weight: 1.7 Lbs. (0.77 kg).
