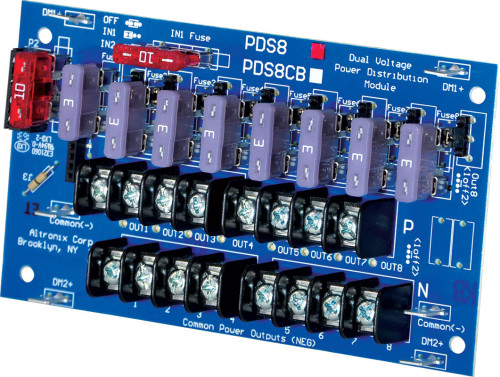

Dual Input Power Distribution Module, 8 Fused Outputs
PDS8 dual input power distribution modules are designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) fused protected outputs.
Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 10A each or 16VAC to 28VAC up to 14A each.
Any of the eight (8) fuse protected power outputs are selectable to follow power input 1 or input 2.
Individual outputs may be set to OFF position for servicing.
PDS8 - fuse protected outputs rated @ 3A (total output current should not exceed max current rating of power supply employed).
Output fuses rated @ 3A each.
Main input fuses rated @ 10A each.
Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Dimensions & Weight
1"W x 5.375"L x 3"H (25.4 mm W x 136.5 mm L x 76.2 mm H).
