Specifications
Input
Output
- Thirty-two (32) fuse protected outputs.
- 24VAC @ 25A (600VA) supply current (0.39A per device, 3.5A max.) or 28VAC @ 20A (560VA) supply current (0.3125A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Electrical
Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
- 24VDC: 307 BTU/Hr.
- 28VDC: 287 BTU/Hr.
- System AC input VA requirement: 660VA.
Features
- Thirty-two (32) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
- Spare fuses provided.
Dimensions & Weight
Enclosure:

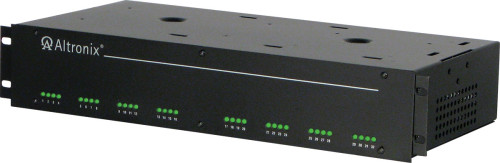

- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Weights (approximate):
- Product Weigtht: 23 Lbs. (10.43 kg).
- Shipping Weigtht: 24 Lbs. (10.89 kg).
