Specifications
Input
Output
- Sixteen (16) fuse protected outputs.
- 6-15VDC @ 10A total output current. (0.625A per device, 3.5A max.)
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Electrical
Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 46-77 BTU/Hr.
- System AC input VA requirement: 218.5VA.
Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
- Spare fuses provided.
Dimensions & Weight
Enclosure:

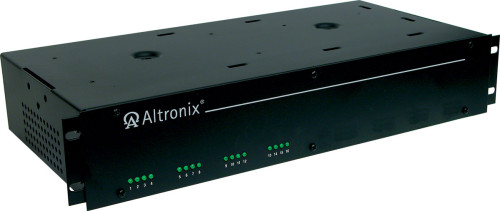

- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Weights (approximate):
- Product Weigtht: 17.15 Lbs. (7.78 kg).
- Shipping Weigtht: 18.15 Lbs. (8.23 kg).
