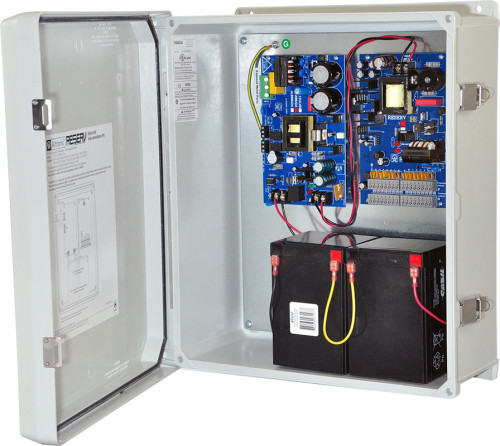

ReServ1WP

Video Surveillance UPS, 4 PTC Outputs 12VDC @ 2A and 12 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, WP2 Outdoor Enclosure

ReServ1WP Outdoor Video Surveillance UPS is designed to simultaneously provide power for 12VDC and 24VAC cameras during normal or power outage conditions. True sine wave regulated AC outputs and regulated DC outputs.

Specifications

  • Input
    • 115VAC 60Hz, 3.5A.
  • Output
    • 16 individually PTC protected power-limited auto-resettable outputs configured as follows:
    • Twelve (12) outputs @ 24VAC.
    • Four (4) outputs @ 12VDC.
      • Total supply current:
        • 24VAC @ 4A (0.33A per device, 1A max.) and 12VDC @ 2A (0.5A per device, 1A max.) (Amb. Temp. - 33° - 30° C).
        • 24VAC @ 3.5A (0.29A per device, 1A max.) and 12VDC @ 2A (0.5A per device, 1A max.) (Amb. Temp. - 33° - 42° C).
        • PTC protected power-limited outputs are rated @ 1A.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switchover to stand-by battery when AC fails.
    • Stand-by Batteries 4A (100VA) load at 24VAC and 2A load at 12VDC max.:
    • - Two (2) 12VDC/7AH (45 minutes).
    • - Two (2) 12VDC/12AH (90 minutes).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Features
    • AC/DC power LED indicators.
    • Sixteen (16) power output LED indicators.
    • Low voltage input and Shutdown LED indicators.
    • True sine wave regulated AC outputs and regulated DC outputs.
    • Audible alarm provides notification of UPS trouble conditions.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.
  • Temperature
    • Storage - 20° C to 70ºC ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 402.5VA.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

Accessories

Name Description
PMK2 Pole Mount Kit, For Outdoor Enclosures
WG1 NEMA Rated Wire Gland Inlets

Dimensions & Weight

Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weigtht: 14 Lbs. (6.35 kg).
  • Shipping Weigtht: 15.5 Lbs. (7.1 kg).
