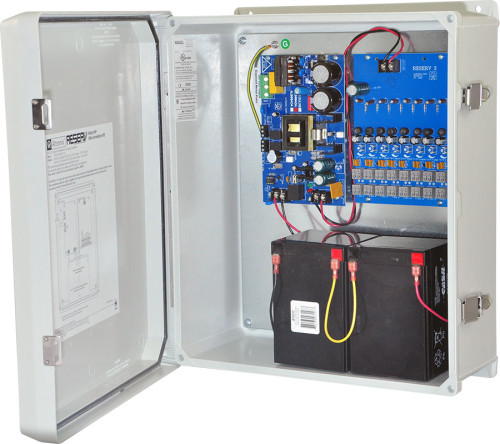

ReServ3WP

Video Surveillance UPS, 16 PTC Outputs 12VDC @ 8A, 115VAC, Battery Charging, WP2 Outdoor Enclosure

ReServ3WP Outdoor Video Surveillance UPS units are designed to provide power for 12VDC cameras during normal or power outage conditions. Regulated DC outputs.

Specifications

  • Input
    • 115VAC 60 Hz, 3.5A.
  • Output
    • 16 individually PTC protected power-limited auto-resettable outputs.
    • 12VDC @ 8A total supply current (0.66A per device, 1A max.) (Amb. Temp. - 33° - 42° C).
    • PTC protected power-limited outputs are rated @ 1A.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switchover to stand-by battery when AC fails.
    • Stand-by Batteries 8A (100VA) max. load at 12VDC:
    • - Two (2) 12VDC/7AH (45 minutes).
    • - Two (2) 12VDC/12AH (90 minutes).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Features
    • AC/DC power LED indicators.
    • Sixteen (16) power output LED indicators.
    • Regulated DC outputs.
    • Audible alarm provides notification of UPS trouble conditions.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.
  • Temperature
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 49 BTU/Hr.
    • System AC input VA requirement: 402.5VA.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

Accessories

Name Description
PMK2 Pole Mount Kit, For Outdoor Enclosures
WG1 NEMA Rated Wire Gland Inlets

Dimensions & Weight

Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weigtht: 14 Lbs. (6.35 kg).
  • Shipping Weigtht: 15.5 Lbs. (7.1 kg).
