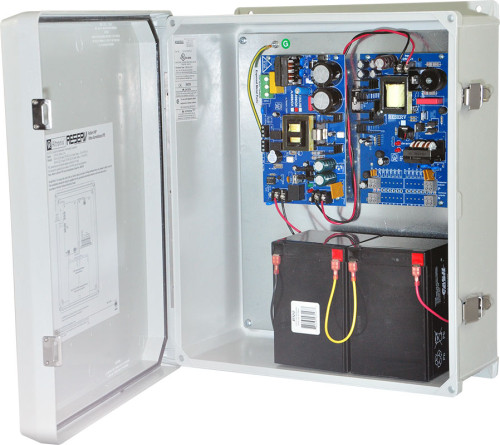

ReServ4WP

Video Surveillance UPS, 2 PTC Outputs 12VDC @ 1A and 2 PTC Outputs 24VAC @ 4A, 115VAC, Battery Charging, WP2 Outdoor Enclosure

ReServ4WP Outdoor Video Surveillance UPS is designed to simultaneously provide power for 24VAC and 12VDC cameras during normal or power outage conditions. True sine wave regulated AC outputs and regulated DC outputs.

Specifications

  • Input
    • 115VAC 60 Hz, 3.5A.
  • Output
    • 4 individually PTC protected auto-resettable outputs configured as follows:
    • Two (2) outputs @ 24VAC. PTCs rated @ 4A.
    • Two (2) outputs @ 12VDC. PTCs rated @ 1A.
      • Total supply current:
        • 24VAC @ 4A max.
        • 12VDC @ 1A.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switchover to stand-by battery when AC fails.
    • Stand-by Batteries 4A (100VA) load at 24VAC and 1A load at 12VDC max.:
    • - Two (2) 12VDC/7AH (45 minutes).
    • - Two (2) 12VDC/12AH (90 minutes).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Features
    • AC/DC power LED indicators.
    • Four (4) power output LED indicators.
    • Low voltage input and Shutdown LED indicators.
    • True sine wave regulated AC outputs and regulated DC outputs.
    • Audible alarm provides notification of UPS trouble conditions.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.
  • Temperature
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 37 BTU/Hr.
    • System AC input VA requirement: 402.5VA.

Agency Listings


CE Compliant

Accessories

Name Description
PMK2 Pole Mount Kit, For Outdoor Enclosures
WG1 NEMA Rated Wire Gland Inlets

Dimensions & Weight

Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weigtht: 14 Lbs. (6.35 kg).
  • Shipping Weigtht: 15.5 Lbs. (7.1 kg).
