T1BV3F4SD

4-Door Altronix/Brivo Access and Power Integration Kit - Trove1BV1 with eFlow6NB, ACM4CB, VR6

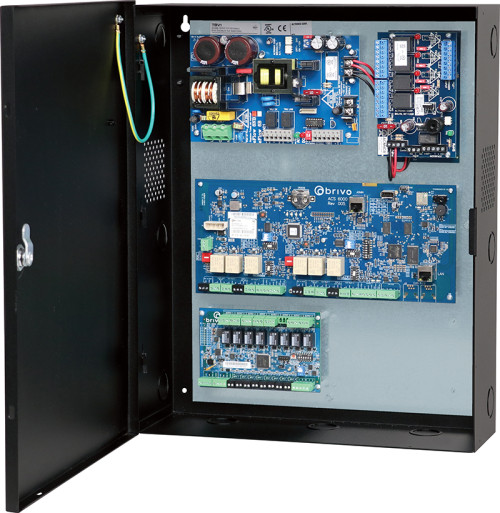

T1BV3F4SD kit consists of Trove1 enclosure and TBV1 Brivo/Altronix backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, and four (4) PTC protected output access control module. This kit also accommodate various combinations of Brivo boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • eFlow6NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz.
        • Input Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 6A continuous.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 7AH / 12VDC (Up to 2 within enclosure). 40 AH / 65 AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Fuse Rating: 7.5A/32V.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow6NB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators (LED)
        • Input: 24VDC is present.
        • Output: Powered.
  • ACM4CB Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow6NB.
        • Input Fuse: 10A / 32V.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) independently controlled Fail-Safe and/or
        • Fail-Secure 2.0A power outputs.
        • Four (4) auxiliary power outputs (unswitched).
      • Outputs Ratings
        • Output PTCs are rated 2A each.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 40 BTU/Hr.
        • 24VDC: 77 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
MM4S Mounting Magnets, Four (4) Quantity per Pack
MM8S Mounting Magnets, Eight (8) Quantity per Pack
Circ1ATSE High Voltage AC Automatic Transfer Switch in Enclosure.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weigtht: 16.23 Lbs. (7.36 kg).
  • Shipping Weigtht: 20.23 Lbs. (9.07 kg).
