T1BVT4

4-Door Altronix/Brivo Access and Power Integration Kit - Trove1BV1 with Tango1B, ACMS8

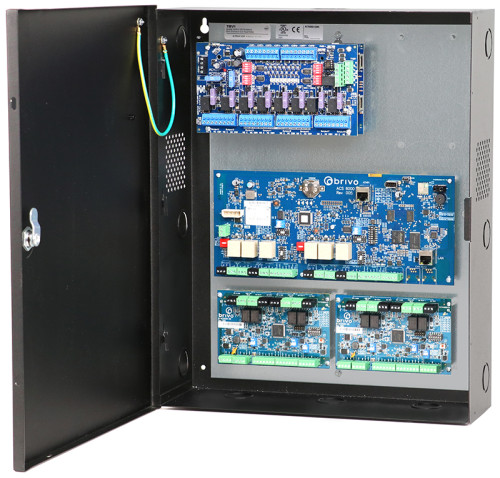

T1BVT4 consists of Tango1B UL Listed PoE Driven Power Supply converts an IEEE802.3bt 4PPoE input into a regulated 24VDC and/or 12VDC output up to 72W and ACMS8 Dual Input/Output Access Power Controller. The T1BVT4 also accommodates Brivo ACS6000-MBE or ACS6100-DB or ACS6100-IO boards. Trove simplifies board layout and wire management, reducing installation time and labor costs.

Specifications

  • Tango1B PoE Driven Power Supply
      • Ethernet Input
        • 802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W
        • CAT-6 or higher cable is recommended for optimum performance
      • Power Output
        • 12VDC up to 6A (72W), and/or 24VDC up to 3A (72W).
        • Combined output not to exceed 72W.
        • When charging batteries:
        • 12VDC up to 5A (62W) and/or 24VDC up to 2.7A (62W)
        • Combined output not to exceed 62W
      • Ethernet Output
        • Pass-through Ethernet Port (data only).
      • Battery Charging
        • Capacity: One (1) LiFePO4 battery within enclosure
        • Type: LiFePO4 (lithium iron phosphate)
        • Failover: Upon AC loss, instantaneous
        • Unique technology allows for single battery to backup 12VDC and/or 24VDC systems
        • (Batteries are sold separately).
      • Supervision
        • Loss of PoE Input.
        • Battery Supervision
      • Indicators (LED)
        • Input: Indicates input voltage is present.
        • Output: Indicates normal operating condition.
        • PoE Type: PoE Class Indicator.
        • Supervision: PoE Fail or BAT Fail
  • ACMS8 Dual Input Access Power Controller
      • Input
        • Voltage: 24VDC and 12VDC from Tango1B.
        • Fuse Rating: 15A/32V.
      • Outputs
        • Voltage: 12 or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Output Ratings
        • Fuses are rated 3A/32V.
      • Indicators LED
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.)
        • 90 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
MM4 Mounting Magnets, Four (4) Quantity per Pack
WM100 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM5 Magnetic Cable Tie Mounts
MM4S Mounting Magnets, Four (4) Quantity per Pack
MM8S Mounting Magnets, Eight (8) Quantity per Pack

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weigtht: 16.23 Lbs. (7.36 kg).
  • Shipping Weigtht: 20.23 Lbs. (9.07 kg).
