T1V3CK1

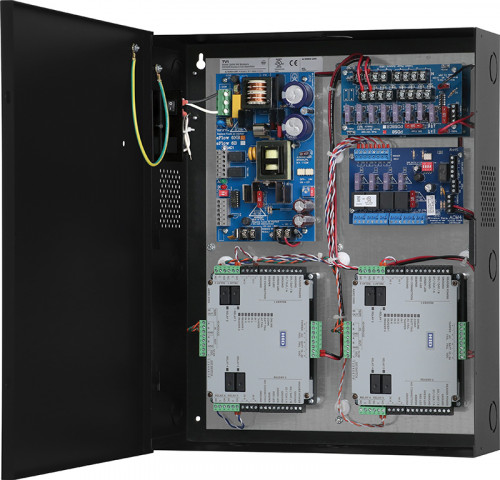

4-Door Altronix/HID Aero Access and Power Integration Wired Kit - Trove1V1 with eFlow6NB, ACM4, VR6, PDS8, RSB1, wire harnesses and finger duct
Altronix T1V3CK1 is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for HID Aero modules. This unit provides ample power and dual voltage outputs to support HID Aero platform controllers and locking devices. The T1V3CK1 accommodates one (1) X1100 Intelligent Controller and one (1) X100 Input Monitor Interface Module. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Specifications
eFlow6NB Power Supply/Charger
Input
- Voltage: 120VAC, 60Hz, 3.5A
- Fusing: 5A / 250V.
Outputs
- Voltage: 24VDC
- Current: 6A continuous
- Auxiliary: 1A (unswitched).
- Other: Overvoltage protection. Filtered and regulated.
Battery Charging
- Capacity: 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure)
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
- (Batteries are sold separately).
Supervision
- AC Failure: Form “C” contacts.
- Battery: Form “C” contacts.
- Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
Indicators LED
- Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected
PDS8 Dual Input Power Distribution Module
Input
- Voltage: 24VDC from eFlow6NB and 12VDC from VR6
- Main Fuse: 10A/32V.
Outputs
- Voltage: 12VDC and/or 24VDC.
- Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Output Fuses: 3A/32V.
Indicators (LED)
- DC Output: Eight (8) individual output LEDs.
- Green: 12VDC
- Red: 24VDC.
VR6 Voltage Regulator
Input
- Voltage: 24VDC from eFlow6NB.
Output
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
Indicators LED
- Input: 24VDC is present.
- Output: Powered.
ACM4 Access Power Controller
Input
- Voltage: 24VDC from eFlow6NB
- Input Fuse: 10A /32V
Outputs
- Voltage: 24VDC
- Four (4) independently controlled fused outputs:
- a) Fail-Safe and/or Fail-Secure power outputs
- Form “C” Relays rated 28VAC or VDC @ 2.5A
- b) Auxiliary power outputs (unswitched)
- c) Any combination of the above
- Output Fuses: 3A/32V
Indicators (LED)
- Red LEDs: Outputs are triggered (relays energized).
- Green LED: FACP disconnect is triggered.
Environmental
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity
- Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
- 90 BTU/Hr.
Agency Listings
CE Compliant
Accessories
| Name | Description |
|---|---|
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
Dimensions & Weight
Enclosure:
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
- 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
- Product Weigtht: 18 Lbs. (8.17 kg).
- Shipping Weigtht: 22 Lbs. (9.98 kg).
