T2PDK75F16S

16-Door Altronix/PDK Red™ Access and Power Integration Kit - Trove2PD2 with eFlow104NB, eFlow102NB, (2) ACMS8, VR6, PD8UL. Trove2 Series

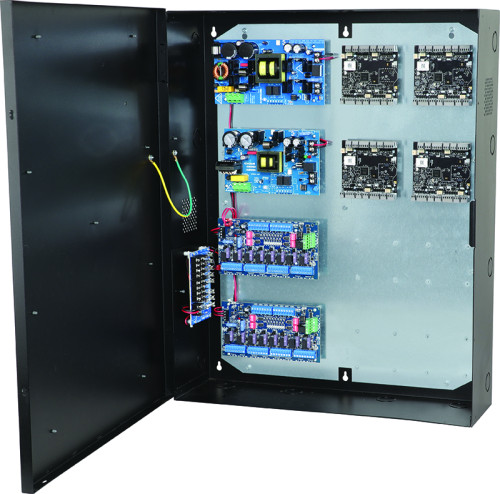

Altronix T2PDK75F16S kit consists of Trove2 enclosure, TPD2 PDK Red™/Altronix backplane with one (1) 24VDC @ 10A, one (1) 12VDC @ 10A power supply/charger, two (2) eight (8) fuse protected dual input/output access control modules, one (1) 12VDC voltage regulator and one (1) eight (8) fuse protected power distribution modules.
This kit also accommodates up to four (4) PDK Red™ modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • eFlow104NB Power Supply/Charger - 1
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A.
        • Main Fuse: 6.5A / 250V.
      • Output
        • Voltage: 24VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • eFlow102NB Power Supply/Charger - 2
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC @ 10A.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
      • Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
      • Type: Sealed lead acid or gel type
      • Failover: Upon AC loss, instantaneous.
      • (Batteries are sold separately).
    • Fire Alarm Disconnect
      • Supervised: Latching or non-latching.
      • EOL: 10K Resistor.
    • Supervision
      • AC Failure: Form “C” contacts.
      • Battery: Form “C” contacts.
      • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
    • Indicators LED
      • AC Input: 120VAC is present.
      • DC Output: Powered.
      • Battery: Discharged or not connected.
    • VR6 Voltage Regulator
        • Input
          • Voltage: 24VDC from eFlow104NB.
        • Output
          • Voltage: 12VDC.
          • Current: 6A continuous.
          • Other: Surge suppression.
        • Indicators LED
          • Input: 24VDC is present.
          • Output: Powered.
    • PD8UL Power Distribution Module
        • Input
          • Voltage: 12VDC from eFlow104NB.
        • Outputs
          • Voltage: 12VDC.
          • Fuses: 3.5A/250V.
        • Indicators LED
          • Green LED: DC Output.
    • Two (2) ACMS8 Dual Input Access Power Controllers
        • Input
          • Voltage: 24VDC from eFlow104NB and 12VDC from VR6.
          • Input Fuse: 15A / 32V.
        • Outputs
          • Voltage: 12 or 24VDC individually selectable.
          • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
          • b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
          • c) Auxiliary power outputs (unswitched).
          • d) Any combination of the above.
          • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
          • Individual outputs may be set to OFF position for servicing.
        • Outputs Ratings
          • Fuses: 3A/32V.
        • Indicators (LED's)
          • Red LEDs: Outputs are triggered (relays energized).
          • Blue LED: FACP disconnect is triggered.
          • Individual voltage LEDs:
          • Green: 12VDC.
          • Red: 24VDC.
    • Environmental
        • Temperature
          • Operating: 0° C to 49° C (32° F to 120° F).
          • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity
          • Relative Humidity: 85% +/- 5%.
        • BTU/Hr. (approx.):
          • 290 BTU/Hr.

    Agency Listings


    CE Compliant

    Accessories

    Name Description
    BR1 Add-On Mounting Bracket
    Trove3BWC Trove Compatible Battery/Wire Enclosure
    Trove3SWC Trove Compatible Battery/Wire Enclosure
    WM5 Magnetic Cable Tie Mounts
    WM25 Magnetic Cable Tie Mounts
    WM100 Magnetic Cable Tie Mounts
    MM4 Mounting Magnets, Four (4) Quantity per Pack
    MM8 Mounting Magnets, Eight (8) Quantity per Pack
    MM12 Mounting Magnets, Twelve (12) Quantity per Pack
    MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
    LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers

    Dimensions & Weight

    Enclosure:
    • Wall mount enclosure for indoor use.
    • Accommodates up to four (4) 12VDC/12AH Batteries.
    • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
    • 3/4" and 1" combination knockouts.
    Weights (approximate):
    • Product Weigtht: 49.8 Lbs. (22.59 kg).
    • Shipping Weigtht: 53.55 Lbs. (24.29 kg).
