T2SFKT6S

6-Door Altronix/Swiftlane Controls backplane Access and Power Integration Kit - Trove2SF2, Tango1B, ACMS8, NetWay5A, BR1

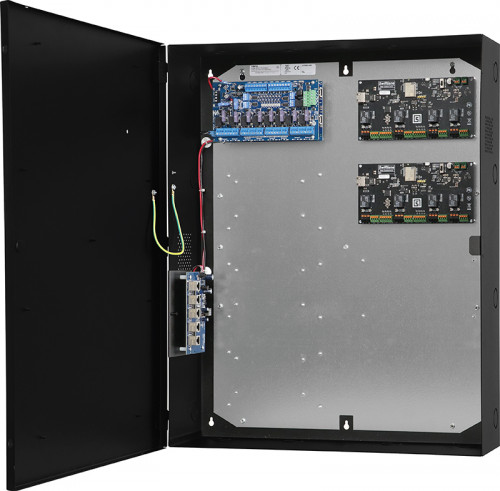

Altronix T2SFKT6S kit consists of Trove2 enclosure, TSF2 Swiftlane/Altronix backplane with one (1) Tango1B PoE Driven Power Supply, one (1) 5-port hardened switch and one (1) 8-dual output fused access power controller.
This kit also accommodates up to two (2) Swiftlane Controls Door Controller 5 (SL-DCU-5) boards. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • Tango1B PoE Driven Power Supply/Charger
      • Ethernet Input
        • 802.3bt PoE up to 90W (or 802.3at up to 30W or 802.3af up to 15W)
      • Power Output (when using 802.3bt 90W)
        • 12VDC up to 5.4A (65W) and/or 24VDC up to 2.7A (65W)
        • Combined output not to exceed 65W
        • When charging batteries:
        • 12VDC up to 4.6A (55W) and/or 24VDC up to 2.3A (55W)
        • Combined output not to exceed 55W
      • Ethernet Output
        • Pass-through Ethernet Port (data only)
      • Battery Charging
        • Capacity: One (1) LiFePO4 battery within enclosure
        • Type: LiFePO4(lithium iron phosphate)
        • Failover: Upon AC loss, instantaneous
        • Unique technology allows for single battery to backup 12VDC and/or 24VDC systems
        • (Batteries are sold separately).
      • Supervision
        • Loss of PoE Input
        • Battery Supervision
      • Indicators (LED)
        • Input: Indicates input voltage is present
        • Output: Indicates normal operating condition
        • PoE Type: PoE Class Indicator
        • Supervision: PoE Fail or BAT Fail
  • NetWay5A 5-Port Hardened Switch
      • Input Power
        • 12VDC, current draw: 150mA
        • 24VDC, current draw: 75mA
      • Output
        • Five (5) data ports.
      • Ethernet Ports:
        • Five (5) 10/100 Mbps ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ACMS8 Dual Input Access Power Controller
      • Input
        • Voltage: 12VDC and 24VDC from Tango1B
        • Input Fuse: 15A / 32V.
      • Outputs
        • Voltage: 12 or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • Fuses: 3A/32V.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 58 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
NetWay1BT Midspan Injector, Single Port 802.3bt, 10/100/1000, PoE/PoE+, Aux. Class 2 power-limited output rated @ 56VDC/90W, 115/230VAC
NetWay4BT 4-Port Managed 802.3bt 4PPoE Midspan Injector, 360W total power, 115/230VAC
NetWay8BT Network Managed 802.3bt 4PPoE Midspan, 8-port, 10/100/1000, 90W max per port (480W total power), Battery Charging, 115/230VAC
WM5 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM100 Magnetic Cable Tie Mounts
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
BR1 Add-On Mounting Bracket
Trove2BWC Battery/Wire Trough Enclosure

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weigtht: 56.7 Lbs. (25.7 kg).
  • Shipping Weigtht: 61.7 Lbs. (28.01 kg).
