T3LMK77F16ND

16-Door Altronix/LiftMaster Access and Power Integration Kit - Trove3M3 with Two (2) eFlow104NTB, Two (2) ACMS8CB, Two (2) VR6, Two (2) PDS8CB, Two (2) NetWay5P, Four (4) LMBK2. Trove3 Series

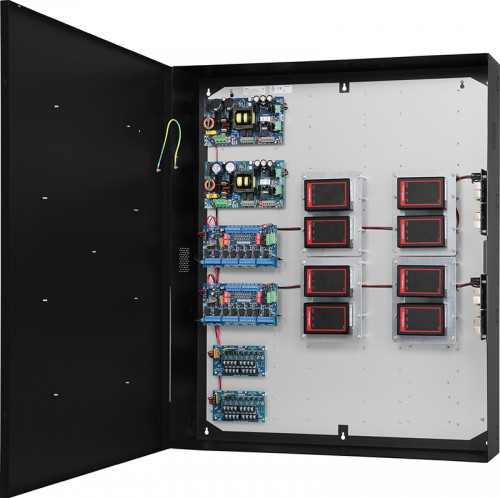

Altronix T3LMK77F16ND kit consists of Trove3 enclosure and TM3 Altronix & LiftMaster backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 12VDC voltage regulators, two (2) eight (8) PTC protected output dual voltage power distribution modules, two (2) eight (8) dual voltage PTC protected output access control modules and two (2) 5-Port Hardened PoE+ Switches. This kit also accommodates up to eight (8) LiftMaster Smart Access 2-Door Controller (CAP2D) for up to sixteen (16) doors in a single enclosure. Four (4) LMBK2 mounting brackets for LiftMaster CAP2D are factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • Two (2) eFlow104NTB Power Supply/Chargers
      • Input
        • Voltage: 120VAC, 60Hz, 4.5A.
        • Input Fuse: 6.3A/250V
      • Outputs
        • Voltage: 24VDC.
        • Current: 10A continuous.
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/12AH (4 within enclosure); 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • Two (2) ACMS8CB Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from eFlow104NTB and 12VDC from VR6.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 12VDC or 24VDC individually selectable.
        • Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • b) Form “C” Relays rated 28VAC or VDC @ 2.5A Rated.
        • c) Auxiliary power outputs (unswitched).
        • d) Any combination of the above.
        • Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Blue LED: FACP disconnect is triggered.
        • Individual voltage LEDs:
        • Green: 12VDC.
        • Red: 24VDC.
  • Two (2) VR6 Voltage Regulators
      • Input
        • Voltage: 24VDC from eFlow104NTB.
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • Two (2) PDS8CB Dual Input Power Distribution Modules
      • Input
        • Voltage: 12VDC from VR6 and 24VDC from eFlow104NTB.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • Two (2) NetWay5P 5-Port PoE+ Hardened Switches
      • Input Power
        • 24VDC from eFlow104NTB
      • Power Output
        • Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge protection
        • Uplink Port: Single data port
      • Ethernet Ports:
        • Five (5) 10/100/1000 Mbps ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 145 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
WM5 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM100 Magnetic Cable Tie Mounts
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
BR1 Add-On Mounting Bracket
Trove3BWC Trove Compatible Battery/Wire Enclosure
Trove3SWC Trove Compatible Battery/Wire Enclosure

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weigtht: 40.1 Lbs. (18.2 kg).
  • Shipping Weigtht: 43.85 Lbs. (19.9 kg).
