TM250
Compact Enclosure for Altronix Power and Mercury/LenelS2 Boards

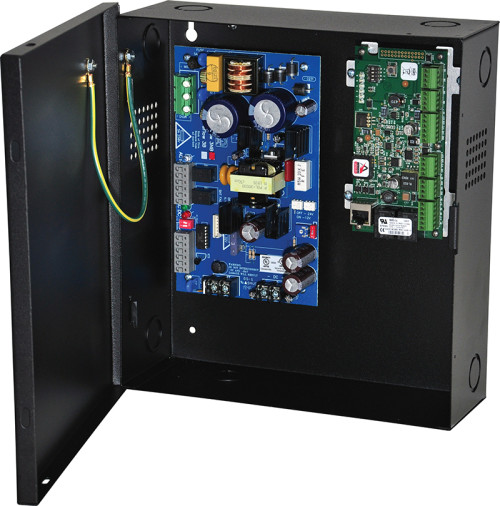

Altronix TM250 accommodates various combinations of Mercury* EP1501 or MR51e boards or Salto CU42E0, CU4200 or CU4EB8 modules with or without Altronix power supply for access systems. It features ample knockouts that are suitable for 0.75” and 1” conduit. *Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt
Specifications
TM250 Enclosure accommodates a combination of the following Mercury/LenelS2 controllers (sold separately):
- Altronix: one (1) Power Supply/Charger or one (1) Tango power supply/charger
- Mercury: up to two (2) EP1501 or MR51e
- Salto: one (1) CU42E0, CU4200 or CU4EB8 module
TM250 Enclosure
- Simplifies board layout and wire management
- Convenient knockout configuration: seven (7) double knockouts (accommodate 0.75” and 1” conduit)
- Accommodates one (1) 12VDC/4AH battery
- 16 gauge powder coated steel
- Includes: One (1) cam lock, one (1) tamper switch and mounting hardware
Agency Listings
CE Compliant
Accessories
| Name | Description |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
Dimensions & Weight
Enclosure:
- Wall mount enclosure for indoor use.
- Dimensions 10.25"W x 11"H x 3.5"D (260.4 mm W x 279.4 mm H x 88.9 mm D).
Weights (approximate):
- Product Weigtht: 5.1 Lbs. (2.31 kg).
- Shipping Weigtht: 6.4 Lbs. (2.9 kg).
