Specifications
Input
- 220VAC (working range 190VAC - 256VAC), 50/60 Hz, 0.75A input.
Output
- 12VDC outputs rated @ 8A total current max. (1.0A per device, 2.5A max.).
- Eight (8) PTC protected power outputs.
- Filtered and electronically regulated.
Features
- Eight (8) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 49 BTU/Hr.
- System AC input VA requirement: 165VA.
Dimensions & Weight
Enclosure:

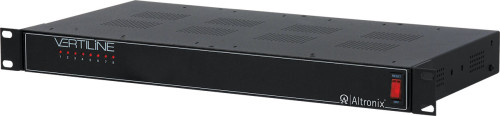

- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
- Product Weigtht: 6.95 Lbs. (3.15 kg).
- Shipping Weigtht: 8.05 Lbs. (3.65 kg).
