WayPoint1024

Outdoor DC Power Suppy/Charger, 24VDC @ 10A, 115VAC, WP3 Enclosure

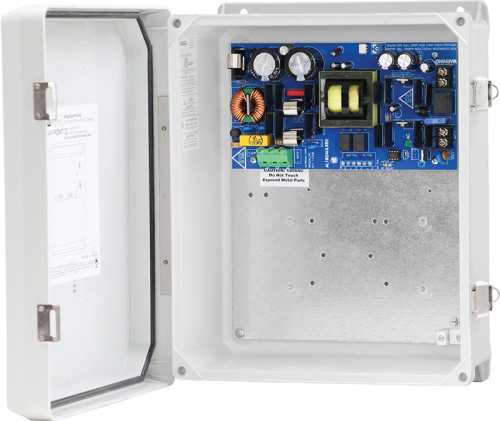

Altronix WayPoint1024 DC Outdoor Power Supply/Charger provides 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.

Specifications

  • Input
    • Voltage: 115VAC, 60Hz, 4.5A
  • Output
    • Voltage: 24VDC
    • Current: 10A continuous supply current
    • Other: Short circuit and thermal overload protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 12VDC/7AH (2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Indicators (LED)
    • Input: Input voltage is present
    • DC Output: Powered.
  • Temperature
    • Operating - 40° C to 60° C (-40° F to 140° F).
    • Storage - 40° C to 70° C (-40° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
PMK1 Pole Mount Kit, For Outdoor Enclosures
LOCK1WP Pad Lock for Altronix NEMA 4/4X Rated Outdoor Enclosures
Vent2 Air Vents For NEMA4/4X Rated Enclosures
WG1 NEMA Rated Wire Gland Inlets

Dimensions & Weight

Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weigtht: 9.2 Lbs. (5.19 kg).
  • Shipping Weigtht: 10.5 Lbs. (5.78 kg).
