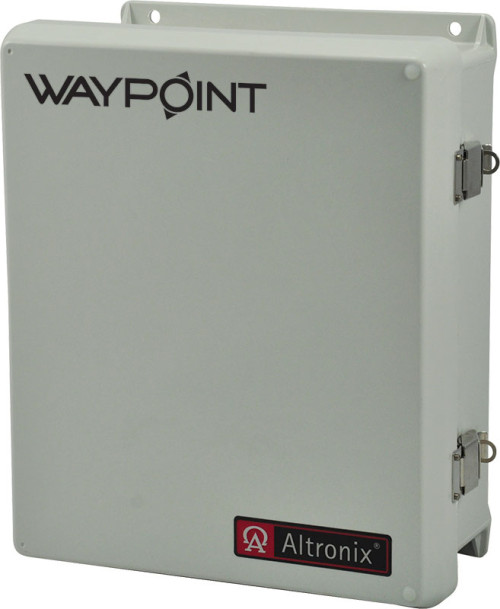

WayPoint30AU

CCTV Power Supply, Outdoor, 2 Fused Outputs, 24/28VAC @ 12.5A, 115/220VAC, WP3 Enclosure

WayPoint30AU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via two (2) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.

Specifications

  • Input
    • Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
  • Output
      • Output options:
        • a. 24VAC @ 12.5A max.
        • b. 28VAC @ 10A max.
        • c. Both 24VAC and 28VAC not to exceed 10A max.
    • Output fuses rated @ 10A/32V.
  • Visual Indicators
    • Individual power output LED indicators.
    • Illuminated master power switch.
  • Temperature
      • Operating Temperature:
        • 24VAC @ 12.5A output: -40° C to 60° C (-40° F to 140° F).
        • 28VAC @ 10A output: -40° C to 70° C ( -40° F to 158° F).
    • Storage Temperature: -20° C to 75° C (-4° F to 167° F).
    • Relative Humidity: 85%, +/- 5%.
    • BTU/Hr. (approx.): 154 BTU/Hr.
    • System AC input VA requirement: 345VA.
  • Operating Altitude
    • - 1000 to 6,561.679 ft. ( -304.8 to 2000m).

Accessories

Name Description
PMK1 Pole Mount Kit, For Outdoor Enclosures
WG1 NEMA Rated Wire Gland Inlets

Dimensions & Weight

Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weigtht: 15.45 Lbs. (7.01 kg).
  • Shipping Weigtht: 16.75 Lbs. (7.6 kg).
