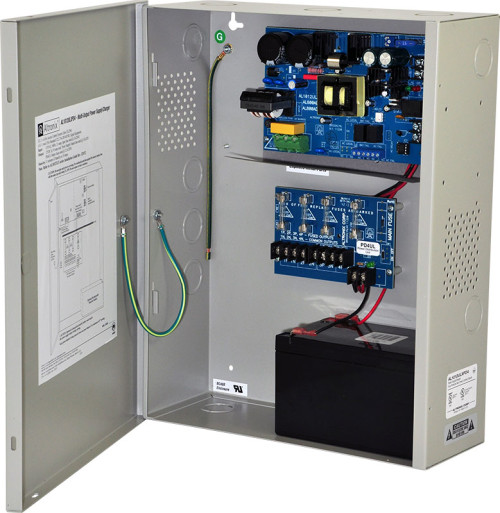

AL1012ULXPD4

Power Supply Charger, 4 Fused Outputs, 12VDC @ 10A, 115VAC, BC400 Enclosure

AL1012ULXPD4 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into four (4) 12VDC non-power limited outputs.

  • Input
    • Input 115VAC, 60Hz, 1.9A.
    • Input fuse rated @ 5A./250V.
  • Output
    • 12VDC output.
    • 10A. continuous supply current.
    • Four (4) fuse protected outputs.
    • Output fuses are rated @ 3.5A./250VAC.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating 0 to 49° C (32 to 120° F ).
    • Storage - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 299VA.
UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

NFPA 72 Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to one (1) 12VDC/12AH Batteries.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weigtht: 11.15 Lbs. (5.06 kg).
  • Shipping Weigtht: 12.05 Lbs. (5.47 kg).
