Pace1STR

Long Range Ethernet Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Small Transceiver

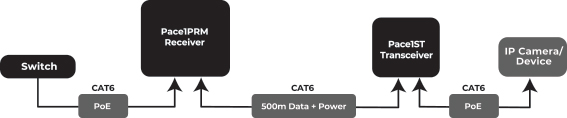

Pace1STR is a long range Ethernet adapter kit which transmits data at 100Mbps full duplex and power via Cat5e or higher cable in a PoE(+) compliant format. The Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1ST mini transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m.

  • Input
      • Pace1PRM:
        • Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
      • Pace1ST:
        • Powered by Pace1PRM.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher.
    • Distance: up to 500m.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1ST. Power provided by Pace1PRM to Pace1ST by PoE protocol.
    • Throughput is rated to pass 100Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
  • CAT5e or Higher
    • Distance: up to 500m. @ 100Mbps.
  • LED Indicators
    • Pace1PRM/Pace1ST: Green - PoE ON (by respective RJ45 jack).
    • Pace1PRM and Pace1ST (RJ45 jack): Yellow and Green LED IP Link status, 10/100Base-T/active.
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.
  • Temperature
      • Operating Temperature:
        • Pace1PRM:
          • - 20° C to +49° C ( - 4° F to 120.2° F).
        • Pace1ST:
          • For 15W: - 40° C to 75° C ( - 40° F to 167° F).
          • For 30W: - 40° C to 65° C ( - 40° F to 149° F).
      • Storage Temperature: - 40° to 75° C ( - 40° to 167° F).
      • Relative humidity: 85% +/-5%.
    • Operating Altitude
      • -304.8 to 2000m.
    UL Listed For:
    Information Technology Equipment (UL60950-1)
    cUL Listed For:
    Information Technology Equipment

    CE Compliant

    Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
    Dimensions (approximate):
    • 0"W x 0"L x 0"H (0 mm W x 0 mm L x 0 mm H).
    Weights (approximate):
    • Product Weight: 0.46 Lbs. (0.21 kg).
    • Shipping Weight: 0.81 Lbs. (0.37 kg).
