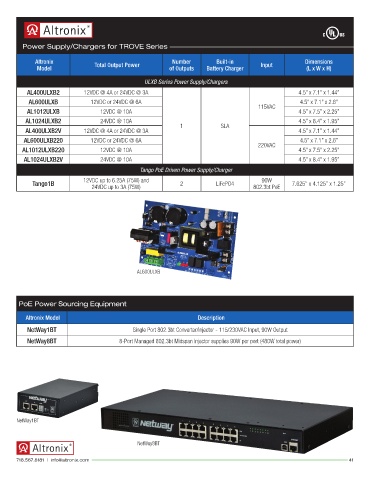

Page 41 - NetWay Spectrum Brochure

Power Supply/Chargers for TROVE Series

Altronix Number Built-in Dimensions
Model Total Output Power of Outputs Battery Charger Input (L x W x H)

ULXB Series Power Supply/Chargers
AL400ULXB2 12VDC @ 4A or 24VDC @ 3A 4.5” x 7.1” x 1.44”
AL600ULXB 12VDC or 24VDC @ 6A 4.5” x 7.1” x 2.6”
AL1012ULXB 12VDC @ 10A 115VAC 4.5” x 7.5” x 2.25”
AL1024ULXB2 24VDC @ 10A 1 SLA 4.5” x 8.4” x 1.95”
AL400ULXB2V 12VDC @ 4A or 24VDC @ 3A 4.5” x 7.1” x 1.44”
AL600ULXB220 12VDC or 24VDC @ 6A 4.5” x 7.1” x 2.6”
220VAC
AL1012ULXB220 12VDC @ 10A 4.5” x 7.5” x 2.25”
AL1024ULXB2V 24VDC @ 10A 4.5” x 8.4” x 1.95”
Tango PoE Driven Power Supply/Charger

Tango1B 12VDC up to 6.25A (75W) and 2 LiFePO4 90W 7.625” x 4.125” x 1.25”
24VDC up to 3A (75W) 802.3bt PoE

AL600ULXB

PoE Power Sourcing Equipment

Altronix Model Description
NetWay1BT Single Port 802.3bt Converter/Injector - 115/230VAC Input, 90W Output

NetWay8BT 8-Port Managed 802.3bt Midspan Injector supplies 90W per port (480W total power)

NetWay1BT

NetWay8BT

718.567.8181 | info@altronix.com 41
