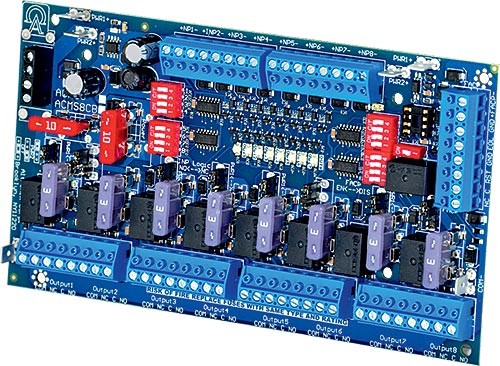

ACMS8

Dual Input Access Power Controller, 8 Fuse Protected Outputs, Board

Altronix ACMS8 is UL listed sub-assemblies designed to be used in Altronix wall and rack mount enclosures. Input power to ACMS8 is to be derived from eFlow series power supplies. Dual input design allows power to be steered from two (2) independent low voltage 5 to 24 VDC power sources into eight (8) independently controlled fuse protected outputs. In ACMS8, these power outputs can also be converted to dry form “C” contacts. Outputs are activated by an open collector sink, normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. ACMS8 will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. The spade connectors allow you to daisy chain power to multiple ACMS8 module. This feature allows you to distribute the power over more outputs for larger systems.

  • Input
      • Two (2) independent low voltage inputs.
        • 1) Input: 12 or 24VDC from eFlow series Altronix Power supply.
        • 2) Input: 12 or 24 VDC from eFlow series Altronix power supply or either 5 or 12 VDC from VR6 Regulator.
      • Voltage Range
        • 20A total input.
        • Main Fuse Rating 15/32A.
      • Current Consumption:
        • 0.6A @ 12V, 0.3A @ 24V with all relays energized.
  • Trigger Inputs
      • Eight (8) individually controlled trigger inputs:
        • a) Normally open (NO) inputs.
        • b) Normally closed (NC) inputs.
        • c) Open collector sink inputs.
        • d) Wet Input (5VDC - 24VDC) with 10K resistor.
        • e) Any combination of the above.
  • Outputs
    • Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max.
    • Do not exceed the individual power supply ratings.
    • Eight (8) selectable 5VDC - 24VDC independently controlled outputs or eight (8) indepently controlled Form “C” relay outputs:
    • a) Fail-Safe and/or Fail-Secure power outputs.
    • b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated.
    • c) Auxiliary power outputs (unswitched).
    • d) Any combination of the above.
    • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
    • Individual outputs may be set to OFF position for servicing.
  • Output Ratings
    • Fuses are rated 3A/32V each.
    • Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
  • Fire Alarm Disconnect
    • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
      • Fire Alarm disconnect input options:
        • a) Normally open [NO] or normally closed [NC] dry contact input. Polarity reversal input from FACP signaling circuit.
    • FACP output relay [NC] contact or provides 10k resistance with [EOL JMP] intact.
  • LED Indicators
    • Red LEDs indicate outputs are triggered.
    • Blue LED indicates FACP disconnect is triggered.
      • Individual voltage LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • Temperature
    • Operating 0ºC to 49ºC (32ºF to 120ºF).
    • Storage -20ºC to 70ºC (-4ºF to 158ºF).
    • Relative Humidity 93% +/-5%.
    • BTU/Hr. (approx.): 4 BTU/Hr.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File
Dimensions (approximate):
  • 4.125"W x 7.65"L x 1.25"H (104.8 mm W x 194.3 mm L x 31.8 mm H).
Weights (approximate):
  • Product Weight: 0.7 Lbs. (0.32 kg).
  • Shipping Weight: 0.95 Lbs. (0.43 kg).
