AL624ET

Linear Power Supply Charger, Single Class 2 Output, 12VDC @ 1.2A, 115VAC, BC100, Enclosure, includes TP1620

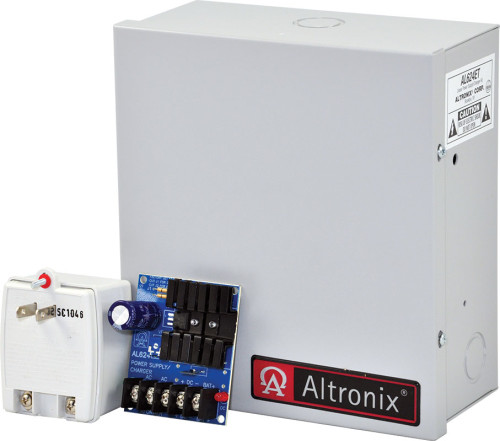

Altronix AL624ET linear power supply/charger kit converts a 115VAC 60Hz input into 12VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

  • Input
    • 115VAC, 60 Hz 1.2A.
  • Output
    • 12VDC output.
    • 12VDC @ 1.2A supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 300mA.
    • PTC battery protection.
    • (Batteries are sold separately).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Features
    • Power supply/charger with enclosure and TP1620 plug-in transformer (16.5VAC/20VA).
    • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 7 BTU/Hr.
    • System AC input VA requirement: 138VA.
BC100 Listings:
UL Recognized
Download File
Name Qty Description Agency Listings
AL624 1 Linear Power Supply Charger, Single Output, 6/12/24VDC @ 1.2A, 16 to 24VAC, Board
BC100 1 Enclosure, 8.5"H x 7.5"W x 3.5"D, Indoor
TP1620 1 Plugin Transformer, 16VAC @ 20VA
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 4.6 Lbs. (2.1 kg).
  • Shipping Weight: 5.15 Lbs. (2.3 kg).
Print
*Batteries sold separately
