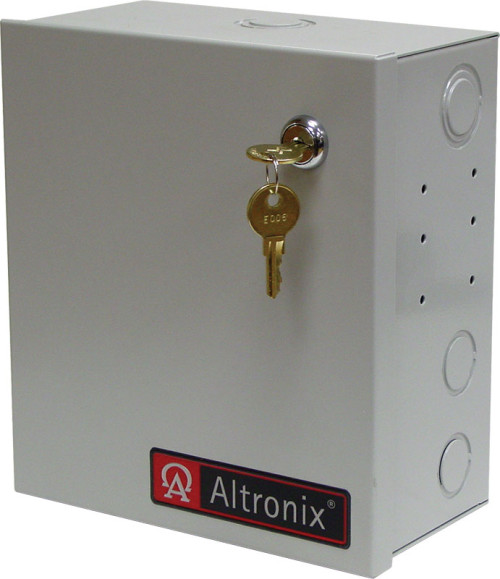

ALTV248ULMI

CCTV Power Supply, 8 Fused Outputs, 24VAC @ 12.5A, 115VAC, BC100M Enclosure

This product replaces ALTV1224I, ALTV248MI and ALTV248ULI

ALTV248ULMI Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

  • -Input
    • 115VAC, 50/60Hz, 3A.
  • Output
    • Eight (8) fuse protected outputs.
    • 24VAC @ 12.5A (300VA) supply current.
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Features
    • Illuminated master power disconnect circuit breaker with manual reset.
    • Unit maintains camera synchronization.
    • Spare fuses provided.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 154 BTU/Hr.
    • System AC input VA requirement: 345VA.
UL Listed For:
Commercial CCTV Equipment (UL2044)
View Certificate
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment
View Certificate

CE Compliant

TAA Compliant

NDAA Compliant

BAA Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.4 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 11.6 Lbs. (5.26 kg).
  • Shipping Weight: 12.1 Lbs. (5.49 kg).
