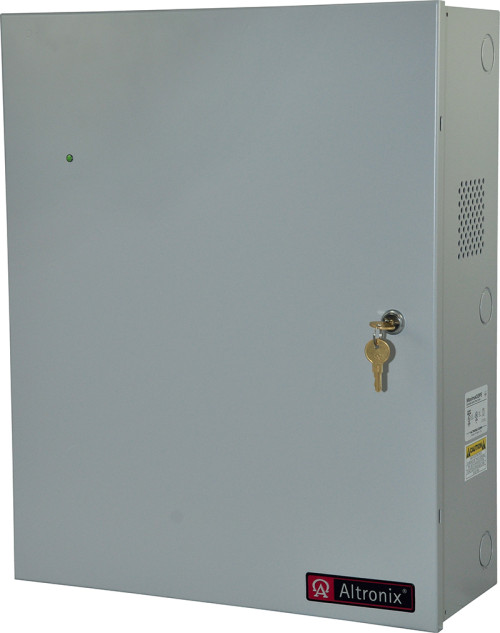

Enclosure, 20.5"H x 16.5"W x 6.25"D, Grey, 19 Gauge, Indoor

Altronix BC750 is a power supply/battery enclosure that can accommodate a wide variety of Altronix power supplies, sub-assemblies, and accessories. Altronix enclosures feature ample knockouts that are suitable for 3/4” and 1” conduits.

  • Features
    • 19 Gauge steel enclosure.
    • Ample knockouts accommodating either 3/4” or 1” conduits for convenient access.
    • Cam lock and keys are included.
  • Capacity
    • Fits up to four (4) 12VDC/12AH batteries.
  • Wall mount enclosure for indoor use.
  • Dimensions 16.5"W x 20.5"H x 6.25"D (419.1 mm W x 520.7 mm H x 158.8 mm D).
Weights (approximate):
  • Product Weight: 19.4 Lbs. (8.8 kg).
  • Shipping Weight: 24.8 Lbs. (11.25 kg).
