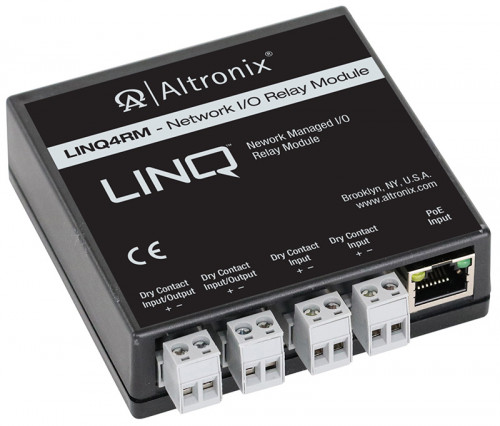

LINQ4RM

4-Port Network Managed I/O Relay Module

Altronix LINQ4RM Network Managed I/O Relay Module extends the capabilities of the LINQ platform by providing flexible remote monitoring, programmable automation, and enhanced system intelligence for today’s connected security, access control, and power management applications.

LINQ4RM features two (2) dry contact inputs and two (2) individually configurable ports selectable as a supervised input or programmable output, allowing the module to be tailored to the unique requirements of virtually any installation. Configured as inputs, the ports enable remote monitoring of connected devices and critical system conditions in real time. Configured as outputs, they provide flexible remote control functionality that can be activated manually or automatically in response to programmable events, enabling intelligent, event-driven automation. Channels can be programmed to follow a temperature threshold exceeded, another input reading, and a calendar schedule. The results can also be combined, i.e. the relay is closed M-F 9AM - 12PM or when temperature is above 90ºC.

Ideal for access control, intrusion, network infrastructure, remote enclosures, and critical power applications, the LINQ4RM gives integrators and system administrators the ability to remotely monitor, automate, and control essential infrastructure from virtually anywhere. Its configurable I/O architecture simplifies system design, reduces the need for additional hardware, and provides the flexibility to adapt as application requirements evolve.

  • Input
    • PoE powered
    • Two (2) Dry Contact inputs
    • Two (2) Dry Contact programmable and supervised monitoring inputs or outputs
    • (Normally Open)
    • Contacts are rated 1A/30VDC
    • Locally or remotely controlled
    • Visit www.altronix.com for latest software updates
  • Reporting
    • Alert notifications on website
  • Indicators (LED)
    • Heartbeat: Normal operation
    • Network Connection: I/O trigger ON/OFF
  • Temperature
    • Operating temperature: – 40ºC to 70ºC (– 40ºF to 158ºF)
    • Storage temperature: – 40ºC to 70ºC (– 40ºF to 158ºF)
    • Relative Humidity: 20 to 85%, non-condensing
    • Operating Altitude: – 304.8 to 2,000m

CE Compliant

TAA Compliant

NDAA Compliant

BAA Compliant
Enclosure:
  • Modular plastic case. VB6
  • Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Weights (approximate):
  • Product Weight: 0.4 Lbs. (0.18 kg).
  • Shipping Weight: 0.7 Lbs. (0.32 kg).
