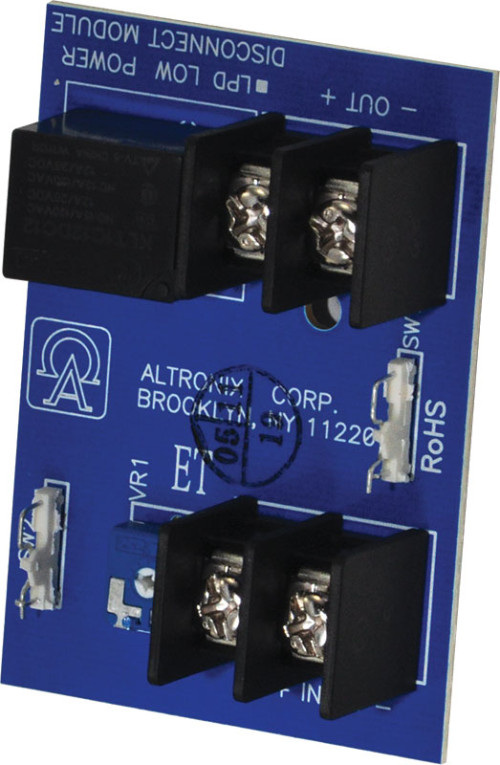

LPD

Low Power Disconnect Module

LPD is a convenient way to add a low battery or low power disconnect feature to any power supply rated up to 8A Threshold is adjustable for added flexibility.

  • Input
    • Input voltage: 12VDC or 24VDC max., 8A.
  • Operating Voltages
      • Low voltage cutoff:
        • 12VDC: 10.5 volts ( +/- 0.3 volts)
        • 24VDC: 20 volts ( +/- 0.3 volts).
      • Restore voltage threshold:
        • 12VDC: 11.5 volts ( +/- 0.3 volts)
        • 24VDC: 23 volts ( +/- 0.3 volts).
  • Relay
    • Relay contact rating 8A max.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
Dimensions (approximate):
  • 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weight: 0.12 Lbs. (0.05 kg).
  • Shipping Weight: 0.15 Lbs. (0.07 kg).
