NetWay1DWPH

Midspan Injector, Outdoor, Single Port, 10/100/1000, PoE/PoE+ (15W), (30W) or (60W); 115/220VAC, WP4 Enclosure, 3 wiring inlets, includes glands, Outdoor

This product replaces NetWay1DWPMH

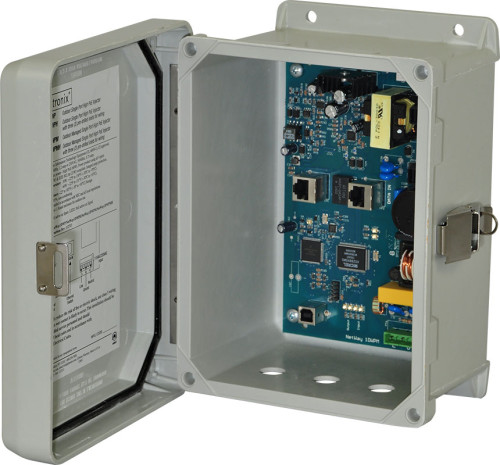

NetWay1DWPH is an outdoor single port midspan injector that provides PoE+ (30W), PoE (15W) or (60W). The unit is ideal for use with outdoor IP cameras and PTZs, WiMAX modems and WLAN access points. NetWay1DWPH features a lightweight NEMA 4/4X IP66-11 rated enclosure that can be wall or pole mounted. Enclosure is pre-drilled with three (3) 5/8" wiring inlets, and NEMA rated glands are included. The unit operates at 115VAC or 230VAC input.

Input
- 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.
Power Output
- Maximum power: 60W.
- Power provided using all 4 pairs on structured cable.
- IEEE 802.3at (30W) & IEEE 802.3af (15W) compliant.
- Integral surge protection.
Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat5e or higher cable.
- Distance: up to 100m.
- Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
Indicators (LED)
- LED 1: PoE active on Spare.
- LED 2: PoE active on Signal.
- Yellow and Green LEDs (by RJ45 jack):
- IP Link status, 10/100Base-T/active.
Temperature
- Relative Humidity 85% +/- 5%.
Operating Altitude
- - 304.8m. to 609.6m.
