NetWay5PWPX

5-port Hardened PoE+ Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure WP2SPX

For managed switch see model NetWay5PQWPX.

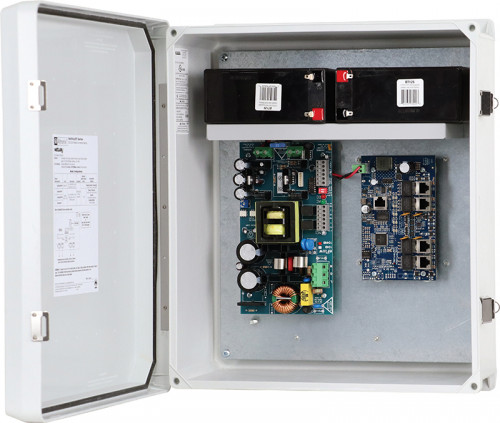

Altronix Netway5PWPX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Enclosure accommodates two (2) 12VDC/7AH batteries (proper ventilation is required).

  • Input
    • Voltage: 120VAC, 60Hz, 4.5A
    • Input Fuse: 6.3A/250V
  • Power Output
      • Maximum Power
        • Four (4) 10/100/1000 Mbps
        • PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
        • 120W total power
        • Integral surge protection
      • Uplink Port
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • LED Indicators
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
    • (Separate ventilated enclosure is required).
  • Temperature
    • Operating - 30ºC to 70ºC (- 22ºF to 158ºF).
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 123 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.8 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
