PDS8K1

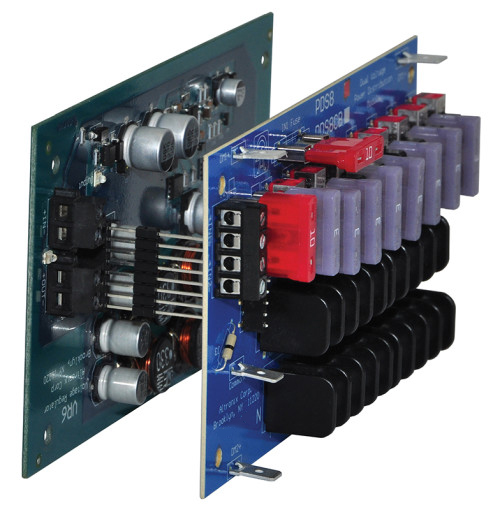

Kit includes: VR6 Voltage Regulator and PDS8 Power Distribution

Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. / Altronix PDS8 dual input power distribution modules are designed to steer the power from either two (2) low voltage AC or DC power sources. The two Inputs can be either, both DC (e.g. 12VDC and 24VDC) or both AC (e.g. 16VAC and 24VAC). That power is distributed over a total of eight (8) fuse protected outputs. The spade connectors allow you to daisy chain multiple PDS8 modules. This feature allows you to distribute the power over more outputs for larger systems.

  • VR6
      • Power Input / Output:
        • Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
        • Input: 24VDC @ 3.5A – Output: 12VDC @ 6A.
      • Output:
        • 5VDC or 12VDC regulated output.
        • Output rating 6A max. non power-limited.
        • Surge suppression.
      • LED Indicators:
        • Input and output LEDs.
      • BTU/Hr (approx.):
        • 5VDC: 15 BTU/Hr.
        • 12VDC: 37 BTU/Hr.
  • PDS8
      • Power Input / Voltage Range:
        • 5VDC to 24VDC, up to 10A each or 16VAC to 28VAC, 60Hz, up to 10A each, 20A total input.
      • Outputs:
        • Fuse protected outputs rated @ 3A per output, non power-limited. Total output 20A max.
        • Do not exceed the individual power supply ratings.
        • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
        • Output voltage of each output is the same as the input voltage of the input selected.
        • Individual outputs may be set to OFF position for servicing.
        • Surge suppression.
      • Output Ratings:
        • 4.8 - 24 VDC or 15.8 - 28 VAC
      • Fuse Ratings:
        • Main input fuses rated @ 10A/32V each.
        • PDS8: individual output fuses rated @ 3A/32V each.
      • LED Indicators:
        • Individual voltage LED indicates 12VDC (Green) or 24VDC (Red/Green).
  • Temperature
      • VR6, PDS8
        • Operating Temperature 0ºC to 49ºC (32ºF to 120ºF).
        • Storage Temperature - 20ºC to 70ºC ( - 4ºF to 158ºF).
        • Relative Humidity 85% +/- 5%.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.
Download File

Components of this kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
Dimensions (approximate):
  • 0"W x 0"L x 0"H (0 mm W x 0 mm L x 0 mm H).
Weights (approximate):
  • Product Weight: 0.8 Lbs. (0.36 kg).
  • Shipping Weight: 1 Lbs. (0.46 kg).
