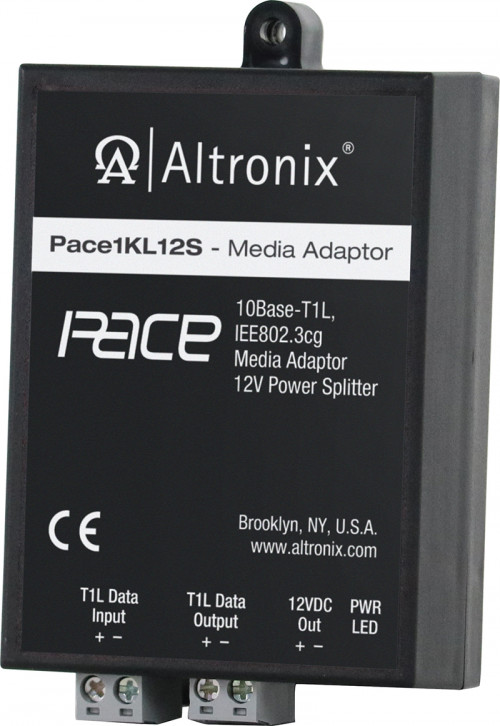

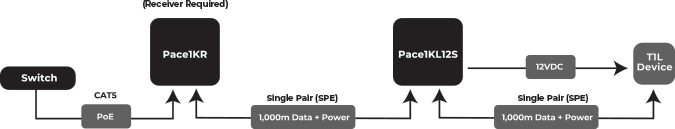

Altronix Pace1KL12S is a SPE (Single Pair Ethernet) media adaptor/splitter that enables connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/ Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. When used in conjunction with Pace1KR, the unit provides T1L data & 12V power separately to power the remote device, thus eliminating the need for local power. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.). In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace1KR or Pace4KR(Q) receiver passes network data & POE power from the POE switch via UTP up to 1km (1,000m, 3,280 ft.) to the Pace1KL12S, which then passes the T1L data to the device and separately provides 12V to the device.
