STRIKEIT4

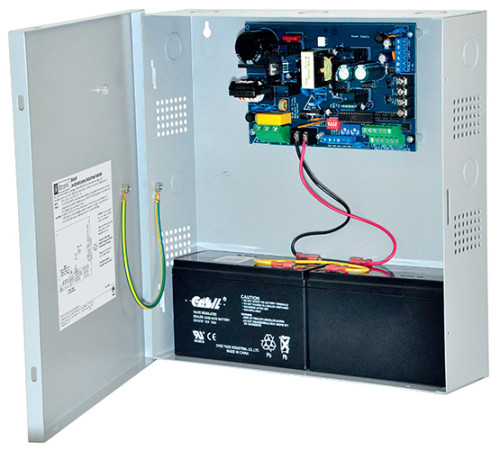

Low Current Locking Device Power Controller / Power Supply/Charger, 24VDC @ 4A in-Rush, Aux. Output, FAI, 115VAC /230VAC, BC300 Enclosure

Altronix StrikeIt4 will operate up to two (2) low current lock hardware devices simultaneously. It is designed to operate motorized electric latch retraction exit devices, electric strikes, mag-locks, electric mortise and cylindrical locksets, etc. Each lock output has an adjustable re-lock delay timer. It will control a pair of doors simultaneously, or independently control two single door leafs. StrikeIt4 has integrated output relays which trigger automatic door operators and control ADA activation push plates/accessories. In addition, one (1) 12VDC and one (1) 24VDC unswitched auxiliary voltage outputs are provided for powering ancillary devices. A configurable FACP interface will either remove or apply power from the lock outputs when activated. LED status indicators are provided to monitor input status, battery condition, AC power loss, and FACP status. Intelligent logic provides protection against accidental shorting of lock outputs.

  • Input
    • Input 115VAC, 60Hz, 2.5A or 230VAC, 50Hz, 1.5A.
    • Two (2) Normally Open (N.O.) trigger inputs (Input 1 and Input 2).
    • FACP Normally Closed (N.C.) input.
    • Two normally open ADA inputs for special mode of interfacing with automatic door operators.
  • Outputs
    • Two (2) 19.8VDC-26.4VDC rated individually controlled lock outputs configurable for fail-secure or fail-safe electronic locking hardware for applications with battery back-up. 24VDC-26.4VDC rated for applications without battery back-up (US applications only). Current rating 2A combined.
    • One (1) 19.8VDC-26.4VDC @ 0.8A rated filtered regulated auxiliary output for applications with battery back-up, 24VDC-26.4VDC @ 0.8A rated for applications in US not requiring battery back-up. Not affected by FACP trigger.
    • One (1) 12VDC filtered regulated auxiliary output rated 0.5A. Not affected by FACP trigger.
    • Two (2) follower Normally Open relay outputs for controlling ADA actuators/accessories rated 28VDC @ 0.5A.
    • Two momentary door operator activation relay outputs.
    • Trouble relay output indicating low AC voltage trouble and battery trouble.
  • Battery Charging
    • Requires two (2) 12V batteries to be wired in series for 24V operation.
    • When 7AH batteries are used, battery capacity for emergency stand-by is 30 minutes.
    • Built-in charger for sealed lead acid batteries.
    • Maximum charge current 650mA.
    • Automatic switch over to stand-by battery when AC fails.
    • Battery PTC rating: 6A.
    • Battery leads included.
    • (Batteries are sold separately).
  • Visual Indicators
    • Green AC Power LED indicates AC presence.
    • Red trigger output LEDs indicate panic device status / opened (activated, short circuit).
    • Green Fire Alarm Interface (FAI) LED indicates FACP interface is activated.
    • Red Battery LED indicates low battery during AC failure and battery test.
    • Green AC status LED indicates loss of AC power.
  • Fire Alarm Disconnect
    • Normally Closed FACP trigger input.
      • Programmable Fire Alarm Disconnect options:
        • Removes power to outputs and disables delayed follower relays.
        • Connects power to lock outputs and enables delayed follower relays.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70ºC ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 120 BTU/Hr.
UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

CSFM - California State Fire Marshal Approved
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.25 Lbs. (2.83 kg).
  • Shipping Weight: 7.15 Lbs. (3.24 kg).
Print
*Batteries sold separately
