T1618100

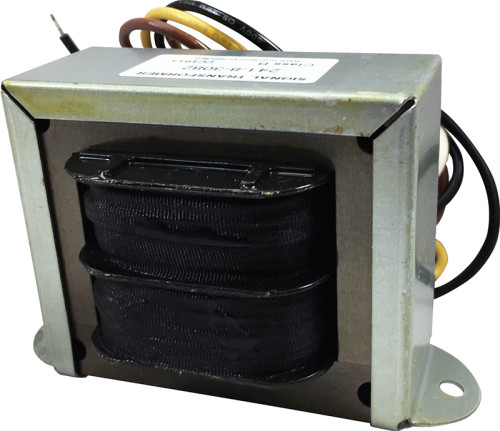

Open Frame Transformer

Altronix T1618100 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Input
- Voltage: 115VAC 50/60Hz, 1A.
Outputs
- Voltage: 16VAC/100VA (6.25A) or 18VAC/100VA (5.5A).
Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF).
- Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 51 BTU/Hr.
