T1AA3CK1

4-Door Altronix/Azure Access and Power Integration Wired Kit - Trove1AA1 with eFlow6NB, VR6, ACM4, PDS8, RSB1, wire harnesses and finger duct

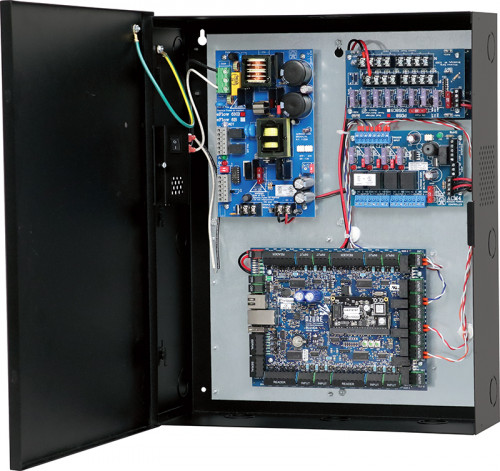

Altronix T1AA3CK1 is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Azure hardware. This unit provides ample power and dual voltage outputs to support Azure platform controllers and locking devices. The T1AA3CK1 accommodates one (1) 4-Door Network Controller. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

  • eFlow6NB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Input Fuse: 5A / 250V.
      • Outputs
        • Voltage: 24VDC
        • Current: 6A continuous
        • Auxiliary: 1A (unswitched).
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: 7AH/12VDC (2 within enclosure); 40AH/65AH (requires separate enclosure)
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected
  • PDS8 Dual Input Power Distribution Module
      • Input
        • Voltage: 24VDC from eFlow6NB and 12VDC from VR6
        • Input Fuse: 10A / 32V
      • Outputs
        • Voltage: 12VDC and/or 24VDC
        • Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2
        • Individual outputs may be set to OFF position for servicing
      • Outputs Ratings
        • Fuses: 3A/32V
      • Indicators (LED)
        • DC Output: Eight (8) individual output LEDs
        • Green: 12VDC
        • Red: 24VDC.
  • VR6 Voltage Regulator
      • Input
        • Voltage: 24VDC from eFlow6NB
      • Output
        • Voltage: 12VDC.
        • Current: 6A continuous.
        • Other: Surge suppression.
      • Indicators LED
        • Input: 24VDC is present.
        • Output: Powered.
  • ACM4 Access Power Controller
      • Input
        • Voltage: 24VDC from eFlow6NB
        • Input Fuse: 10A /32V
      • Outputs
        • Voltage: 24VDC
        • Four (4) independently controlled fused outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs
        • Form “C” Relays rated 28VAC or VDC @ 2.5A
        • b) Auxiliary power outputs (unswitched)
        • c) Any combination of the above
        • Output Fuses: 3A / 32V
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 90 BTU/Hr.

CE Compliant

Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
Name Qty Description Agency Listings
Trove1 1 Access and Power Integration Enclosure, Requires compatible Trove1 Series Backplane
eFlow6NB 1 Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
ACM4 1 Access Power Controller, 4 Fused Relay Outputs, FAI, Board
PDS8 1 Dual Input Power Distribution Module, 8 Fused Outputs
VR6 1 Voltage Regulator. 24VDC input into 5VDC or 12VDC output
RSB1 1 Single Power ON/OFF Rocker Switch with Mounting Bracket
TAA1 1 Trove1 Backplane (only) for Altronix/Azure
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
  • 1", 3/4" and 1 1/2" knockouts.
Weights (approximate):
  • Product Weight: 18 Lbs. (8.17 kg).
  • Shipping Weight: 22 Lbs. (9.98 kg).
Configure Trove Print

Access controllers not included

*Batteries sold separately
